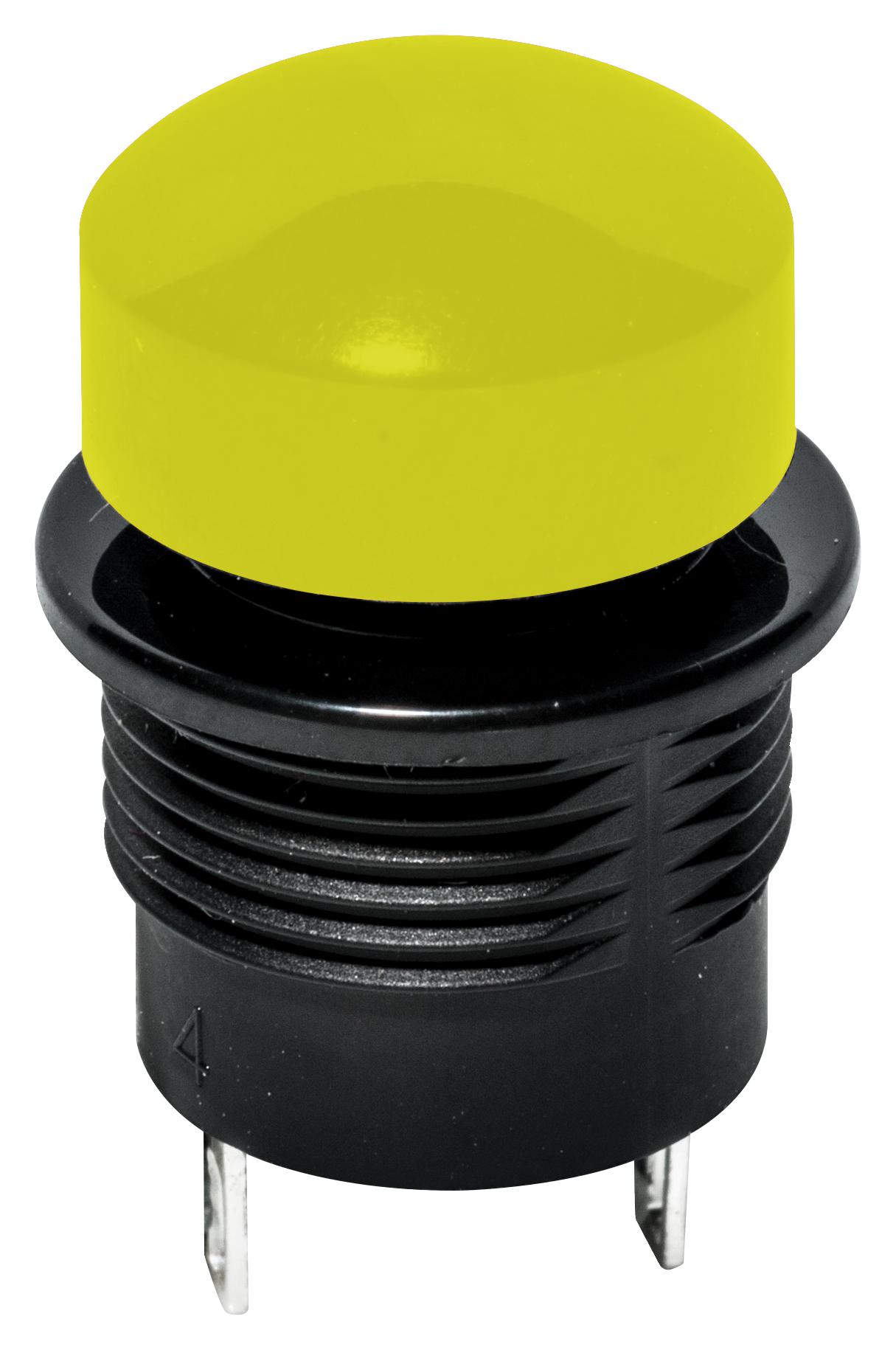

C&K COMPONENTS PNP8S5T2Y03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers reliable operation with a snap-action mechanism, IP68 sealing for harsh environments, and a lifespan of 1,000,000 cycles. It supports resistive loads up to 5A and features multiple housing styles, terminals, and wire lead options. Suitable for control grips, heavy equipment, industrial instruments, and conveyor controls, it features a threaded front mount, operates within -40°C to +85°C, and has a tactile feedback for precise control. Its durable construction ensures long-lasting performance in demanding applications.
C&K COMPONENTS PNP8S5T2Y03QE Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
- CONTACT ARRANGEMENT: N.O. and N.C.
- MOUNTING TYPE: Threaded front mount
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2 mm max.
- OPERATING POINT: 0.9 + 0.25 mm
- OVER TRAVEL: 0.25 mm min.
- OPERATING FORCE: 3N + 1.5N / 8N + 1.5N
- VIBRATION: 10-500 Hz 10g Max
- SHOCK: 50g 11ms sawtooth wave
- CONTACT RATING: 5A/32 VDC resistive, 10mA/5 VDC resistive (Gold over Silver)
- DIELECTRIC STRENGTH: 1000 V AC for 1 min.
- INSULATION RESISTANCE: 1 GΩ @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max
- BOUNCE TIME: <5 ms
- HOUSING: PBT/PC
- OPERATING TEMPERATURE: -40°C to +85°C
- SEALING: IP68
- ACTUATOR: PBT
- TERMINALS: Copper with silver nickel inlay, silver plating
- MOVABLE CONTACT: Copper alloy, gold over silver plating
- OPERATING ENVIRONMENT: Suitable for harsh industrial conditions
Buy the Celsfe 4H – Reliable Industrial Pushbutton Switch for Heavy Equipment
Order the Celsfe 4H sealed pushbutton switch online today to benefit from high durability, IP68 waterproof sealing, and a long lifespan of 1 million cycles. Perfect for industrial control panels, heavy machinery, and conveyor systems, this switch supports resistive loads up to 5A and features multiple housing styles, terminal types, and wire lead options. Its robust design ensures reliable operation in extreme environments, making it an essential component for maintenance-free, long-lasting industrial automation solutions.
Buy Celsfe 4H sealed pushbutton switch now and experience unmatched durability and performance in industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8S5T2Y03QE?
You can click on the BUY or RFQ button to purchase PNP8S5T2Y03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8S5T2Y03QE?
You can download the PNP8S5T2Y03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8S5T2Y03QE?
C&K COMPONENTS
