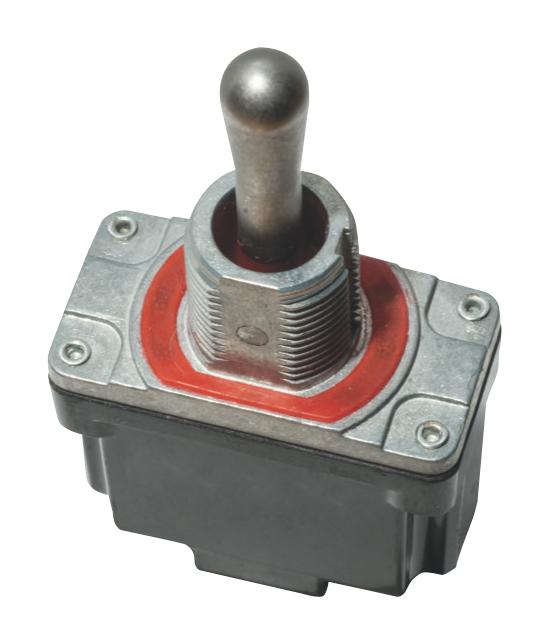

C&K COMPONENTS PT207SSQ Sealed Power Toggle Switch
The PT207SSQ Sealed Power Toggle Switch offers robust performance for demanding industrial applications, featuring IP66/IP68 ratings, oil and fuel resistance, and high-strength heat-resistant housing. Suitable for off-road, construction, agricultural vehicles, material handling equipment, and outdoor industrial uses, it features a variety of switch functions like On-None-On, On-None-Off, and Mom-Off-Mom with multiple actuation options including screw, quick connect, and solder terminals. UL 61058-1 certified, it provides reliable operation under harsh conditions with an operating temperature range from -40°C to +85°C.
C&K COMPONENTS PT207SSQ Sealed Power Toggle Switch Specifications:
- UL Electrical Ratings: 15A GP, 277VAC 50/60Hz T85; 1/2 hp, 125VAC 50/60Hz T85; 1 hp, 250VAC 50/60Hz T85; 15(4)A, 277VAC 50/60Hz T85
- DC Ratings: 0.75A, 125VDC; 0.5A, 250VDC
- Electrical Life: 10,000 cycles
- Dielectric Strength: 2500V min. (terminal to toggle)
- Insulation Resistance: 1000 MΩ min.
- Contact Resistance: 50 mΩ max.
- Operating Temperature Range: -40°C to +85°C
- IP Ratings: IP66/IP68
- Materials: Thermoset housing, copper alloy contacts, nickel-plated hardware
- Switch Functions: Multiple options including SP and DP configurations
- Actuator Types: Standard, screw terminal, quick connect, solder terminal
- Housing Design: High strength, heat resistant, and weatherproof
- Sealed construction with integrated panel seal for extra protection
Buy the Buy C&K Switches PT207SSQ Sealed Power Toggle Switch Part Number PT207SSQ Online
Purchase the C&K PT207SSQ Sealed Power Toggle Switch online today to ensure dependable operation in harsh environments. Its IP66/IP68 ratings guarantee protection against dust, dirt, and water, making it ideal for off-road, construction, and outdoor industrial use. Featuring multiple functions like On-None-On and Mom-Off-Mom, it offers excellent versatility. With UL certification and a temperature range from -40°C to +85°C, this switch is engineered for rugged durability and reliable performance in demanding conditions. Order now to enjoy fast shipping and technical support.
Buy C&K PT207SSQ sealed power toggle switch now and experience unmatched reliability and high durability in demanding outdoor applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PT207SSQ?
You can click on the BUY or RFQ button to purchase PT207SSQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PT207SSQ?
You can download the PT207SSQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PT207SSQ?
C&K COMPONENTS
