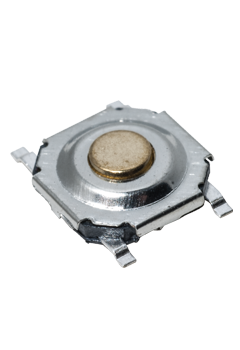

C&K COMPONENTS PTS525SK08SMTR2LFS Microminiature Tact Switch
The PTS 525 Series comprises microminiature SMT tactile switches designed for high cycle durability and reliable momentary action. Featuring a compact size with actuator heights of 0.8 mm and 1.5 mm, these switches are ideal for consumer electronics, remote controls, and instrumentation. They support infrared reflow soldering, operate within -20°C to 70°C, and have a maximum voltage of 15 VDC and current of 20 mA. Available in various configurations with excellent electrical and mechanical endurance, they are suited to demanding electronic applications requiring precise tactile response.
C&K COMPONENTS PTS525SK08SMTR2LFS Microminiature Tact Switch Specifications:
- Actuator Height: 0.8 mm, 1.5 mm
- Maximum Voltage: 15 VDC
- Maximum Current: 20 mA
- Operating Temperature: -20°C to 70°C
- Contact Resistance: < 100 mΩ
- Dielectric Strength: 250 VAC (1 minute)
- Bounce Time: <10 ms
- Mechanical Life: Up to 1,000,000 cycles
- Soldering Method: Infrared reflow in accordance with IEC61760-1
- Contact Arrangement: SPST, N.O.
- Packaging: Reels of 5,000 or 4,000 pieces, suitable for automated SMT assembly
- Environmental: Suitable for ruggedized applications with high cycle requirements
Buy the CK Switches Series Microminiature Tact Switch: PTS525SK08SMTR2LFS
Order the CK Switches microminiature tact switch PTS525SK08SMTR2LFS today and experience precise tactile feedback, reliable performance, and long-lasting durability. Designed for SMT assembly, these switches support high cycle operation with up to 1,000,000 cycles, making them suitable for a wide range of consumer electronics, remote controls, and instrumentation. With compact profiles of 0.8 mm and 1.5 mm actuator heights, they ensure space-efficient design without compromising on electrical performance or reliability. Purchase online now for fast delivery and high-quality performance.
Get CK Switches PTS525SK08SMTR2LFS today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS525SK08SMTR2LFS?
You can click on the BUY or RFQ button to purchase PTS525SK08SMTR2LFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS525SK08SMTR2LFS?
You can download the PTS525SK08SMTR2LFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS525SK08SMTR2LFS?
C&K COMPONENTS
