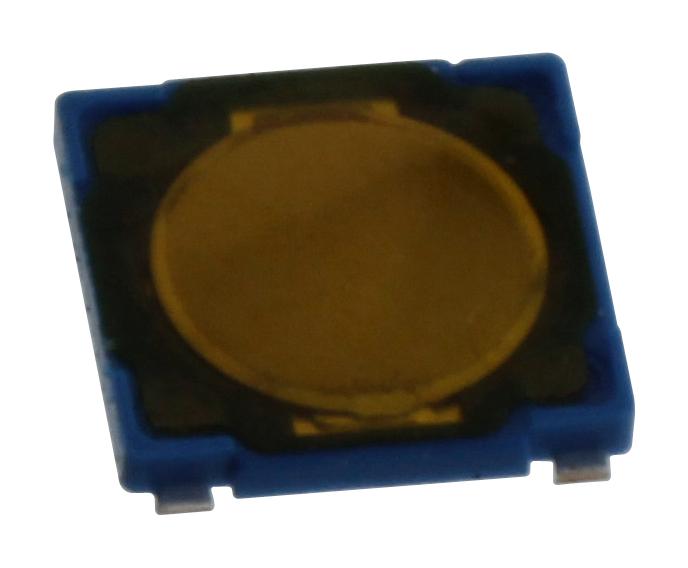

C&K COMPONENTS PTS530GM055SMTRLFS Miniature Tactile Switch
The PTS530 GM055 SMTR LFS is a compact 4.5 x 4.5 mm footprint tactile switch designed for industrial and consumer electronics. It features a 0.55 mm thickness, momentary operation with SPST N.O. contact configuration, and a travel of 0.2 mm. The switch offers a high cycle life of 150,000 to 1,000,000 operations, with an operating temperature range of -40°C to 85°C. It is RoHS compliant, sealed to IP40, and suitable for surface-mount soldering. The switch supports a maximum voltage of 12 VDC and current of 50 mA, ensuring reliability in space-constrained applications like remote controls, IoT devices, and medical equipment.
C&K COMPONENTS PTS530GM055SMTRLFS Miniature Tactile Switch Specifications:
- Footprint: 4.5 x 4.5 mm
- Height: 0.55 mm
- Travel: 0.2 mm +/- 0.1 mm
- Operation Mode: Momentary, SPST N.O.
- Contacts: Silver over Ni, gold plated options available
- Max. Voltage: 12 V DC
- Max. Current: 50 mA
- Cycle Life: 150,000 to 1,000,000 operations
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -55°C to 85°C
- Sealing: IP40
- Soldering Method: Surface-mount, compatible with lead-free reflow
- Insulation Resistance: > 100 MΩ
- Contact Resistance: < 100 mΩ
- Bounce Time: < 10 ms
- Material: Thermoplastic housing, silver over Ni contacts, optional gold plating
- Environmental Compliance: RoHS
Buy the CK Switches K5V – Reliable Illuminated Tactile Switch for Industrial Applications
Order the CK Switches K5V miniature tactile switch online today. Featuring a compact 4.5x4.5 mm footprint, IP40 sealing, and high cycle life, it’s ideal for IoT, medical, and consumer electronics. With a maximum voltage of 12 VDC and current of 50 mA, it ensures reliable operation in space-constrained applications. Available in surface-mount design with RoHS compliance, the switch supports various LED options for backlit interfaces. Buy now for durable, high-performance switching suited for modern electronic devices.
Get CK Switches K5V today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS530GM055SMTRLFS?
You can click on the BUY or RFQ button to purchase PTS530GM055SMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS530GM055SMTRLFS?
You can download the PTS530GM055SMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS530GM055SMTRLFS?
C&K COMPONENTS
