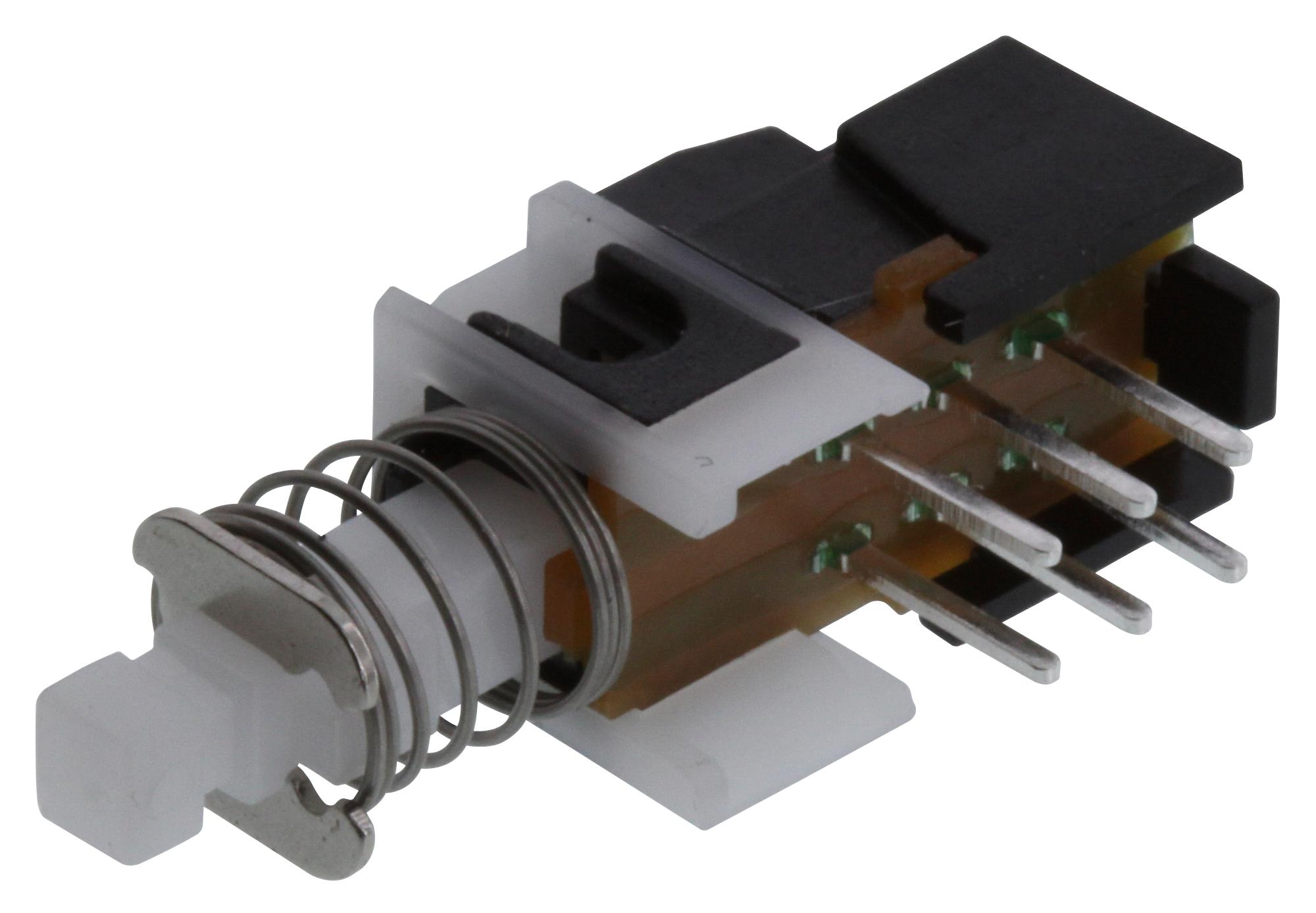

C&K COMPONENTS PHB2UEETS1A Pushbutton Switch
Short Stroke Pushbutton Switches offer reliable, sealed contacts with momentary or latching action, suitable for industrial control, instrumentation, and non-power on-off applications. These switches are rated at 1 A @ 15 V DC with a dielectric strength of 500 V DC between terminals. They feature 2 or 4 pole configurations, with durable brass and phosphor bronze contacts, sealed for environmental protection, and operate within -10°C to 60°C. Their compact design ensures long life of 10,000 cycles, making them ideal for reliable control in demanding environments.
C&K COMPONENTS PHB2UEETS1A Pushbutton Switch Specifications:
- Rating: 1 A @ 15 V DC
- Dielectric Strength: 500 V DC between terminals
- Operating Life: 10,000 cycles
- Contact Resistance: 20 mΩ initial
- Insulation Resistance: 100 MΩ
- Total Travel: 2.5mm, Latching Travel: 1.5mm
- Operating Force: 170g (2U), 230g (4U)
- Operating Temperature: -10°C to 60°C
- Bounce Time: <10 ms
- Sealing: Sealed contacts
- Materials: Brass, phosphor bronze, PA 66, POM, stainless steel, phenolic resin, epoxy
- Dimensions: Not specified in detailed measurements but designed for compact industrial use
- Mounting: Suitable for panel mounting with optional caps
Buy the Keystone PHB2UEETS1A – Reliable Pushbutton Switch for Industrial Applications
Purchase the Keystone PHB series pushbutton switch online today. Designed for industrial environments, it offers sealed contacts, reliable operation, and a long cycle life of 10,000 cycles. With a rated current of 1 A at 15 V DC, it ensures dependable performance in instrumentation, measurement, and non-power control applications. Its compact design and sealed construction make it suitable for demanding environments, providing peace of mind and consistent operation. Buy now to enhance your control systems with high-quality, durable switches built to last.
Get Keystone PHB2UEETS1A today—built for precision, durability, and environmental sealing in control systems.
