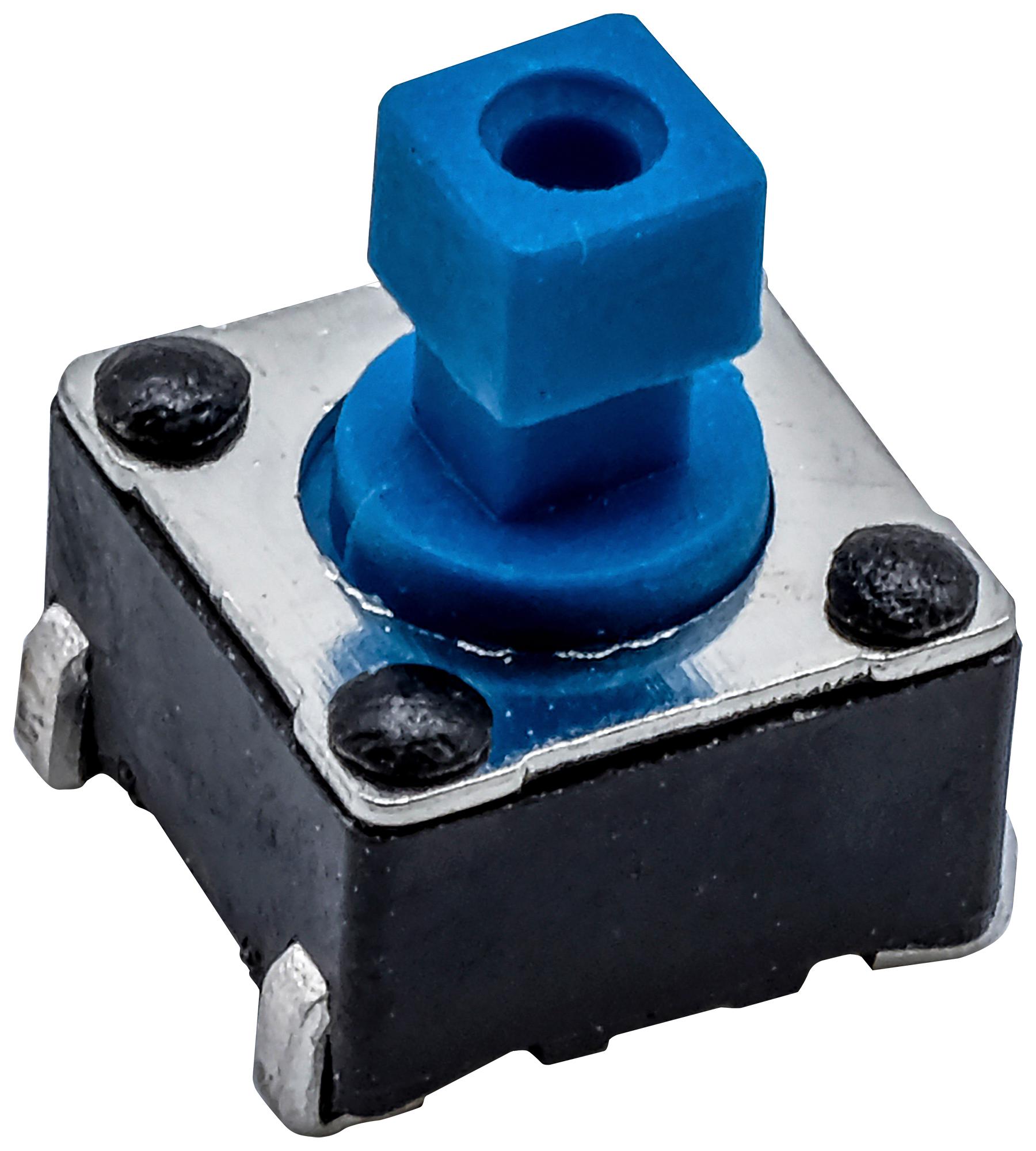

C&K COMPONENTS PTS645SM73JSMTR92LFS 6 mm Tact Switch
The PTS645 series are 6mm tactile switches designed for reliable momentary action with SPST, normally open contact configuration. They are compact, measuring 6 x 6mm, available in various actuator lengths and actuation forces, including 130g, 160g, 200g, and 260g. Suitable for consumer, instrumentation, computer, and industrial applications, these RoHS-compliant switches feature silver-plated contacts, a contact rating of 50mA at 12V DC, and a life expectancy of 100,000 operations. They support both thru-hole and surface-mount options with different actuator shapes and height configurations for versatile use. Temperature ranges from -20°C to 85°C depending on type, with robust construction for durable operation.
C&K COMPONENTS PTS645SM73JSMTR92LFS 6 mm Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: SPST, N.O.
- Terminals: PC pins
- Contact Rating: 50 mA @ 12 V DC
- Dielectric Strength: 250 V AC min.
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10^9 Ω min.
- Life Expectancy: 100,000 operations
- Operating Temperature: -20°C to 85°C (dependent on type)
- Actuation Force: 130 grams, 160 grams, 200 grams, 260 grams
- Switch height from PCB: 43mm, 50mm, 70mm, 78mm, 95mm, 13mm (varies with actuator shape and mounting)
- Soldering: Preheating to 100°C for 45 sec., solder at 255°C for 5 sec.
- Packaging: Bulk, tape & reel for SMT, different reel counts per height
- RoHS compliant and compatible
- Material: Silver-plated contacts, durable plastic housing
Buy the Buy Brand PTS Series 6 mm Tact Switch Part Number PTS645SM73JSMTR92LFS Online
Order the PTS Series 6 mm tactile switch online today to benefit from high durability, precise actuation forces, and versatile mounting options. Perfect for reliable circuit control in consumer, instrumentation, and industrial equipment, these switches support a range of actuator heights and forces with RoHS compliance, ensuring safety and environmental standards. Enjoy fast delivery and competitive pricing by purchasing directly from our online store, making integration into your next project straightforward and efficient.
Buy PTS Series 6 mm tactile switch now and experience reliable momentary switching with diverse actuator options for industrial and consumer applications.
