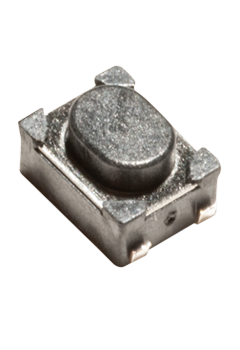

C&K COMPONENTS PTS810SJG250SMTRLFS Microminiature SMT tactile switch
The PTS 810 Series is a microminiature SMT tactile switch featuring a 4.2x 3.2 mm footprint and 2.5 mm thickness, designed for control panels, remote controls, and keyless entry systems. It offers high cycle durability, color-coded actuators, and a momentary action with SPST N.O. contact. Suitable for infrared reflow soldering, these switches operate between -40°C to 85°C and support up to 16 V DC and 50 mA. Available in tape & reel packaging, these switches ensure precise, reliable switching with a contact resistance below 500 mΩ.
C&K COMPONENTS PTS810SJG250SMTRLFS Microminiature SMT tactile switch Specifications:
- FUNCTION: momentary action
- CONTACT ARRANGEMENT: SPST N.O.
- TERMINALS: J type for SMT
- TRAVEL: 0.15 mm at 160 & 260 gf, 0.20 mm at 400 & 600 gf
- OPERATING LIFE: 150,000 to 150,000 cycles depending on model
- MAXIMUM VOLTAGE: 16 VDC
- MAXIMUM CURRENT: 50 mA
- DIELECTRIC STRENGTH: 250 VAC (1 min)
- CONTACT RESISTANCE: < 500 mΩ
- INSULATION RESISTANCE: > 100 MΩ
- BOUNCE TIME: < 10 ms
- OPERATING TEMPERATURE: -40°C to 85°C
- SOLDERING METHOD: Infrared Reflow according to IEC61760-1
- Packaging: Reels of 2900 pieces, external diameter 330 mm
Buy the Buy CK Switches PTS 810 Series Part Number PTS810SJG250SMTRLFS Online
Order the CK Switches PTS 810 Series PTS810SJG250SMTRLFS today online for reliable, high-precision switching in control panels, remote controls, and keyless entry systems. These compact switches feature a 4.2x 3.2 mm footprint and 2.5 mm thickness, making them ideal for space-constrained applications. With a momentary action, SPST normally open contact, and high cycle durability of up to 150,000 operations, they provide consistent, long-lasting performance. Suitable for infrared reflow soldering, they operate from -40°C to 85°C, supporting up to 16 VDC and 50 mA, ensuring dependable operation in various environments.
Get CK Switches PTS 810 Series PTS810SJG250SMTRLFS today—designed for high durability and precise control in compact applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS810SJG250SMTRLFS?
You can click on the BUY or RFQ button to purchase PTS810SJG250SMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS810SJG250SMTRLFS?
You can download the PTS810SJG250SMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS810SJG250SMTRLFS?
C&K COMPONENTS
