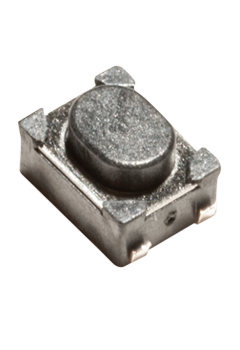

C&K COMPONENTS PTS810SJM250SMTRLFS Miniature SMT Tactile Switch
The PTS 810 Series is a high-reliability, microminiature SMT top-actuated tactile switch designed for compact applications like control panels, nomad devices, remote controls, and keyless entry systems. It features a 4.2x 3.2 mm footprint, 2.5 mm thickness, and high cycle life, with options for various actuation forces and terminal types. Its rugged construction and RoHS compliance make it suitable for demanding environments, with long operating life and excellent electrical performance, ideal for space-constrained electronic devices.
C&K COMPONENTS PTS810SJM250SMTRLFS Miniature SMT Tactile Switch Specifications:
- Function: momentary action
- Contact arrangement: SPST N.O.
- Terminals: J type for SMT
- Travel: 0.15mm at 160 & 260 gf, 0.20mm at 400 & 600 gf
- Operating Life Force: 160 to 600 gf with up to 150,000 cycles
- Electrical: Max voltage 16 VDC, Max current 50 mA, Dielectric strength 250 VAC (1 min), Contact resistance < 500 mΩ, Insulation resistance > 100 MΩ, Bounce time <10 ms
- Environmental: Operating temperature -40°C to 85°C
- Soldering: Infrared reflow suitable according to IEC61760-1
- Packaging: Reels of 2,900 pieces, with 330 mm diameter
- Material: RoHS compliant, silver plated terminal options
- Actuator options: Gray, White, Blue, RoHS silver plated, with forces from 160 to 600 gf
- Dimensions: 4.2 mm x 3.2 mm footprint, 2.5 mm height
Buy the CK Switches PTS810 Series – Reliable Tactile Switch for Industrial Applications
Order the CK Switches PTS810 Series online today for high-reliability performance in control panels, portable devices, and automation systems. These miniature SMT tactile switches feature a compact footprint of 4.2x 3.2 mm and a thickness of 2.5 mm, making them ideal for space-constrained environments. Designed for up to 150,000 cycles with various actuation forces, they offer excellent electrical stability and durability. Easily customizable with different terminal types and actuator forces, ensuring optimal functionality for your electronic projects.
Get CK Switches PTS810 Series today—built for precision and long-lasting durability in space-constrained electronic designs.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS810SJM250SMTRLFS?
You can click on the BUY or RFQ button to purchase PTS810SJM250SMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS810SJM250SMTRLFS?
You can download the PTS810SJM250SMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS810SJM250SMTRLFS?
C&K COMPONENTS
