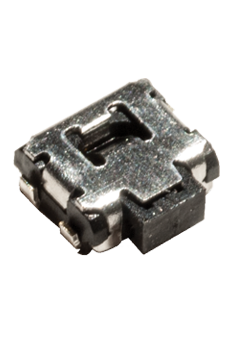

C&K COMPONENTS PTS840ESDPKSMTRLFS Microminiature SMT Switch
The C&K COMPONENTS PTS840ESDPKSMTRLFS is a microminiature SMT (Surface Mount Technology) side-actuated switch, part of the PTS 840 series. This switch is designed for compact applications such as nomad devices, remote controls, and personal health diagnostics. It offers a 3.5 x 3.55 mm footprint, a front PIP leads option for shear resistance, and an ESD pin option for electrostatic discharge protection. The switch is suitable for infrared reflow soldering and is available in tape and reel packaging for automated assembly. Its robust design and compact size make it a versatile choice for a wide range of electronic devices.
C&K COMPONENTS PTS840ESDPKSMTRLFS Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces, External diameter 330 mm
