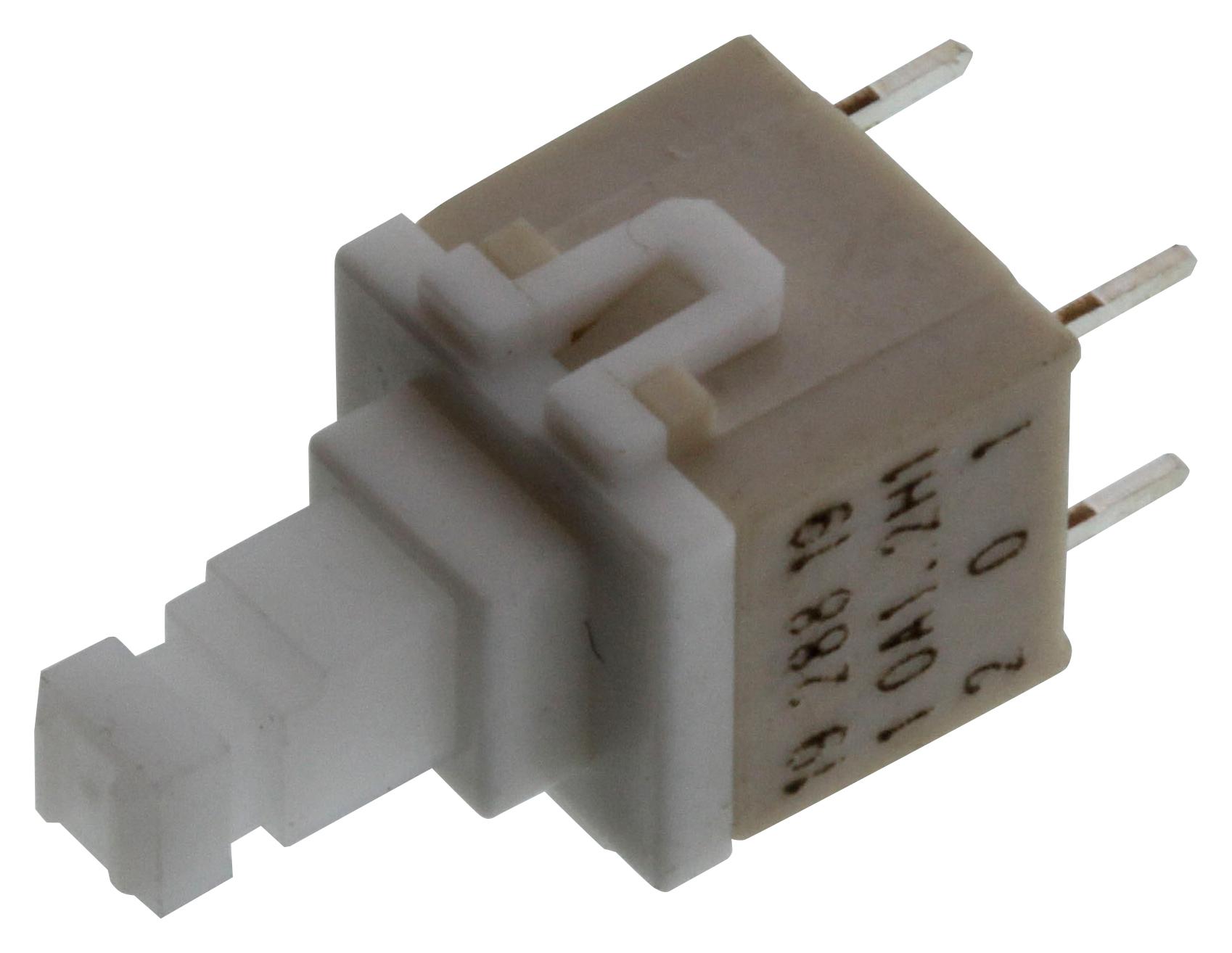

C&K COMPONENTS PVA1OAH112NV2 Short Stroke Key Switch
The C&K COMPONENTS PVA1 OA H1 1.2N V2 is a short-stroke key switch designed for a variety of applications, including automotive (air conditioning, lighting) and industrial control panels. Its compact design, short stroke to latch, and wide range of actuator heights make it a versatile choice. The switch is RoHS compliant and offers options for momentary or push-push functionality, with various operating forces available. It's designed for medium power applications and features robust construction and reliable performance.
C&K COMPONENTS PVA1OAH112NV2 Short Stroke Key Switch Specifications:
- Compact design: Yes
- Short stroke to latch: Yes
- Actuator heights: Wide variety
- Adapted for: Medium power applications
- Typical applications: Automotive, Industrial, Control panel
- Function: Momentary, Push-Push
- Contact arrangement: 2 make contacts (DPST)
- Switching mode: Non-shorting
- Terminals: PC pins
- Total travel: 2.4 mm
- Latching travel: 2.4 / 1.5 mm
- Electrical travel: 0.8 mm
- Operating force: 1.2N, 1.7N, 3.5N
- Switching power max: 3 W DC
- Switching voltage max: 32 V DC
- Switching current max: 100 mA DC
- Dielectric strength: 1000 V (between open contacts)
- Operating life: ≥ 1 x 10[5] operations
- Contact resistance: ≤ 100 mΩ
- Insulation resistance: ≥ 10[10] Ω
- Bounce time: ≤ 3 ms
- Operating temperature: -40˚C to 85˚C
- RoHS Compliant: Yes
- Solderability: Wave soldering, Hand soldering
