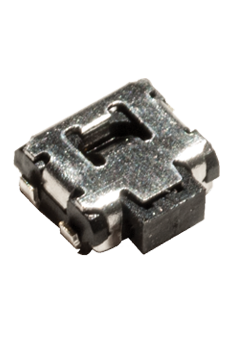

C&K COMPONENTS PTS840GKSMTRLFS Microminiature SMT Switch
The C&K COMPONENTS PTS840GKSMTRLFS is a microminiature side-actuated SMT tactile switch offering a compact footprint and versatile design. It's ideal for applications requiring a small form factor and robust performance, such as nomad devices, remote controls, and personal health diagnostics. The switch incorporates features like front PIP leads for increased shear resistance and ESD pin options for electrostatic discharge protection. Available with various lead and peg configurations, the PTS840 series allows for customization to meet specific application requirements. Its easy build-a-switch concept simplifies the ordering process, enabling users to create a tailored switch solution.
C&K COMPONENTS PTS840GKSMTRLFS Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces, Dimensions of reels according to EIA 481B, External diameter 330 mm
- footprint: 3.5 x 3.55 mm
