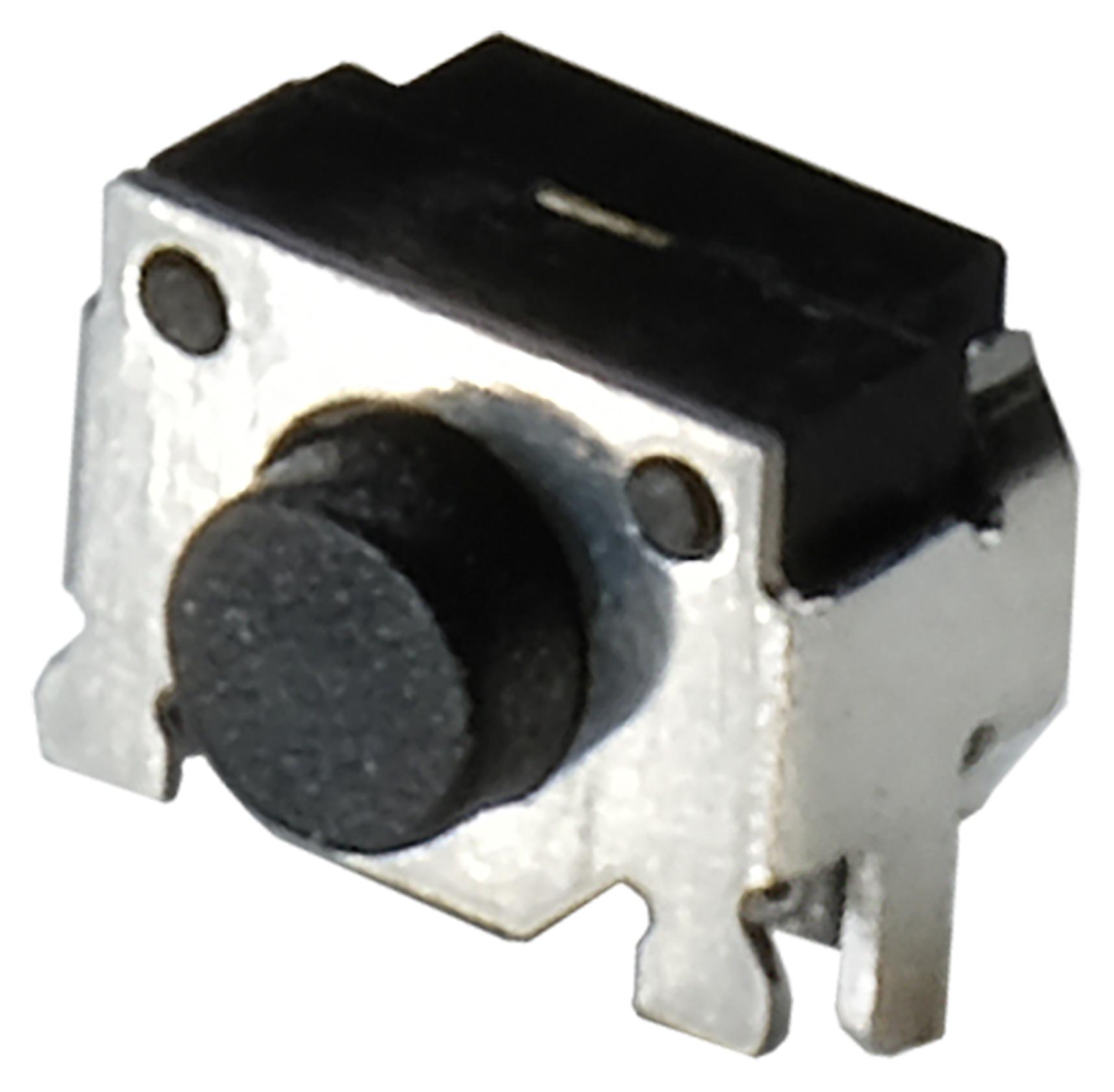

C&K COMPONENTS PTS845VK20PSMTR4LFS Tactile Switch
The PTS845 Series is a compact, 4.5x3.4mm SMT side actuated tactile switch designed for space-constrained applications. Featuring a momentary contact function (SPST N.O.), it offers reliable performance with options for 80, 160, and 260 gf operation forces. With a travel of 0.2 mm, these switches support up to 100,000 cycles and are suitable for devices like headphones, health monitors, sports watches, and Bluetooth accessories. They are soldered via infrared reflow, operate reliably from -40°C to 90°C, and are available in tape and reel packaging for automated assembly.
C&K COMPONENTS PTS845VK20PSMTR4LFS Tactile Switch Specifications:
- FUNCTION: momentary action
- CONTACT ARRANGEMENT: SPST N.O.
- TERMINALS: SMT termination
- TRAVEL: 0.2 mm = 0.1 mm
- LIFE: 100,000 cycles
- MAXIMUM VOLTAGE: 12 VDC
- MAXIMUM CURRENT DC: 50 mA
- CONTACT RESISTANCE: 100 ma
- INSULATION RESISTANCE: 100 MO min.
- DIELECTRIC VOLTAGE: 10 mA
- OPERATING TEMPERATURE: -40°C to 90°C
- STORAGE TEMPERATURE: -30°C to 80°C
- SOLDERING: Infrared Reflow
- PACKAGING: 2,000 pieces per reel
Buy the CK Switches Series PTS845 Tactile Switch: PTS845VK20PSMTR4
Explore the PTS845 Series tactile switches for compact, reliable momentary actuation in small electronic devices. Available with force options of 80, 160, and 260 gf, these SMT switches support 100,000 cycles and operate from -40°C to 90°C. Soldered via infrared reflow, they are ideal for headphones, health monitors, sports watches, and Bluetooth accessories. Packaged in tape and reel, they ensure automated assembly efficiency, providing durability and consistent performance in space-constrained applications.
Buy CK Switches PTS845VK20PSMTR4 now and experience unmatched reliability and performance for compact electronic devices and wearables.
