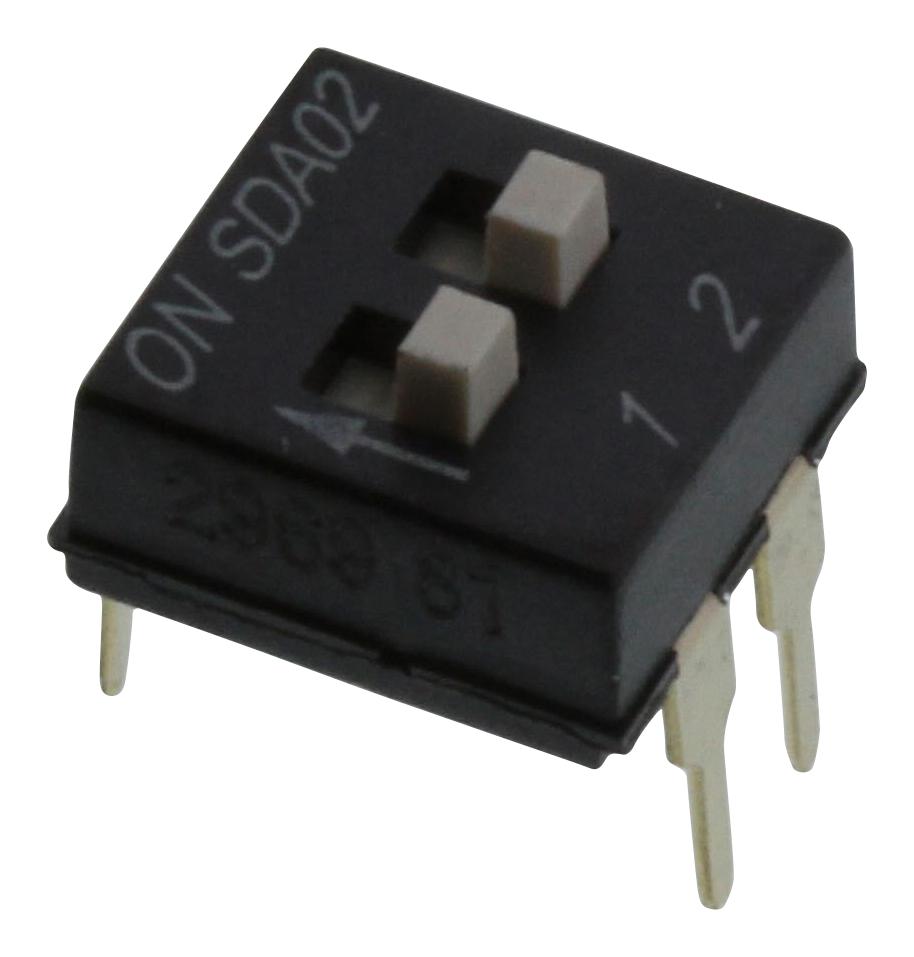

C&K COMPONENTS SDA02H1BD Low Profile DIP Switch
The SDA Series Low Profile DIP Switches feature space-saving design in both thru-hole and surface-mount variants. They are RoHS compliant and suitable for address setting, logic switching, and control applications in industrial and computing environments. These switches offer a contact rating of 25 mA at 24 V DC or 100 mA at 5 V DC, with a mechanical and electrical life of 1,000 cycles. Manufactured with gold-plated beryllium copper contacts and housed in black PPS, they ensure durability and reliable performance at temperatures from -40°C to 85°C. Packaging includes tubes and tape and reel options for flexibility in assembly.
C&K COMPONENTS SDA02H1BD Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles
- Contact Resistance: Max 50 mΩ initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: Min 300 V DC for 1 min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: Max 800 grams
- Housing: PPS, Black (UL94V-0)
- Contacts: Gold plated Beryllium copper
- Terminals: Gold over nickel plated brass
- Tape Seal: Polyimide
- Size options include thru-hole and surface mount variants
- Packaging: Tubes and tape & reel for surface mount
- Actuator options: Flush, Extended, with or without tape seals
- RoHS compliant, suitable for industrial, electronics, and logic switching applications
Buy the C&K Series SDA Low Profile DIP Switches: SDA02H1BD
Purchase the C&K SDA02H1BD low profile DIP switch online today for versatile application in industrial controls, electronics, and computing. Its compact design, gold-plated contacts, and durable housing ensure reliable switching performance. Ideal for address setting, logic switching, and function control in various environments, this switch features a contact rating of 25 mA at 24 V DC, with a lifespan of 1,000 cycles. Supported by flexible packaging options including tubes and tape and reel, it guarantees fast, easy ordering for OEM and assembly lines.
Get C&K SDA02H1BD today—designed for space-saving, reliable switching in industrial and electronics control systems.
