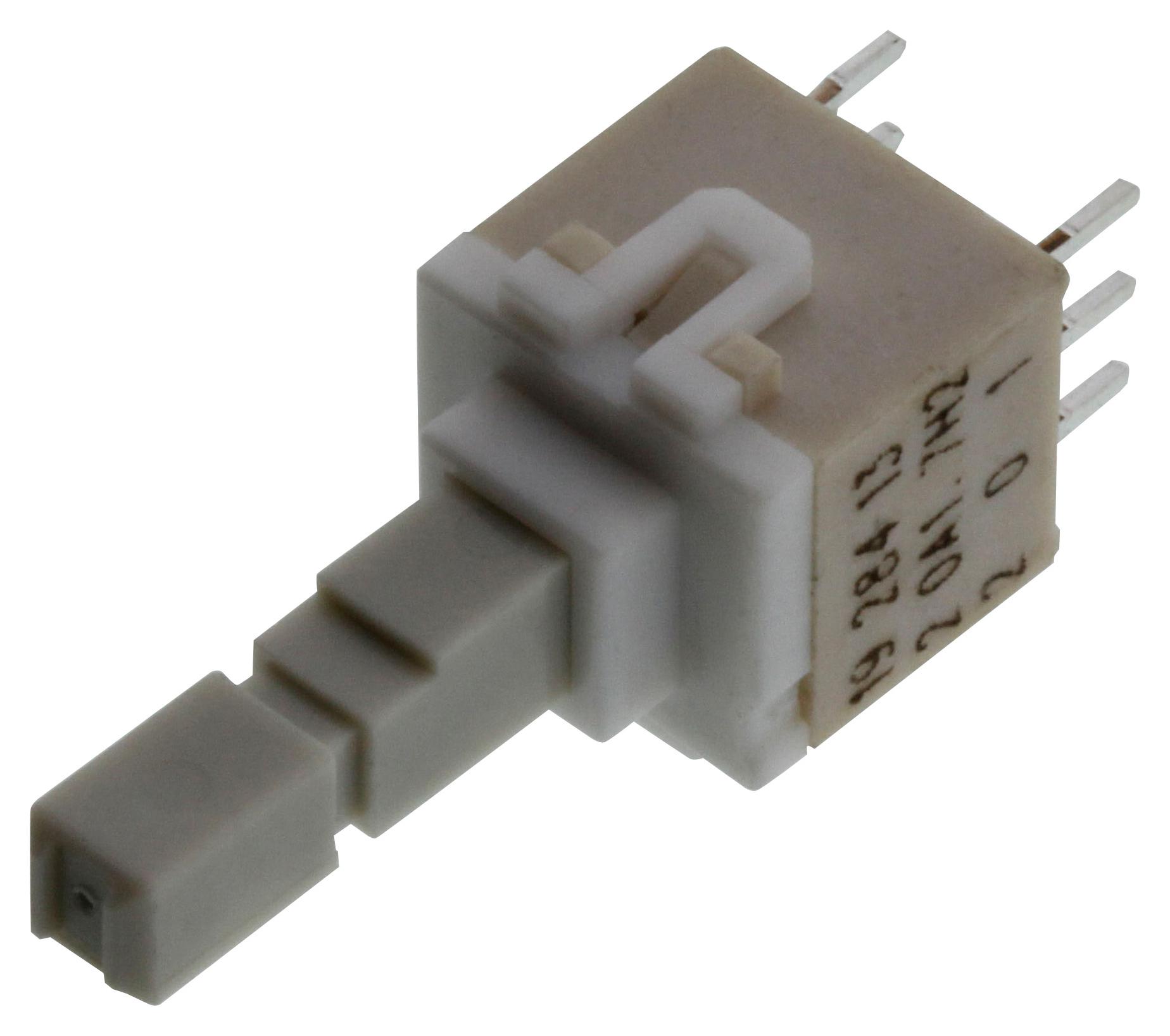

C&K COMPONENTS PVA2OAH217NV2 Short Stroke Key Switch
The PVA series comprises short stroke key switches designed for compact, durable, and reliable industrial and automotive control applications. Crafted with a focus on medium power, these switches feature momentary and push-push functionalities with various actuator heights and terminal types, including snap-in options. With switching capacities up to 3 W DC and voltages up to 32 V DC, they are compliant with RoHS standards and suitable for control panels, lighting, and air conditioning systems. Their rugged construction ensures long operational life and consistent performance in demanding environments.
C&K COMPONENTS PVA2OAH217NV2 Short Stroke Key Switch Specifications:
- Function: Momentary, Push-Push
- Max Power: 3 W DC
- Switching Voltage Max: 32 V DC
- Contact Arrangement: PVA1 (2 make contacts, DPST), PVA2 (2 changeover contacts, DPDT)
- Switching Mode: Non-shorting
- Operating Life: 1 x 10^6 operations
- Total Travel: 2.4 mm; Latching Travel: 1.5 mm
- Electrical Travel: 0.8 mm
- Mechanical Dielectric Strength: 1000 V between open contacts (PVA1), 750 V (PVA2)
- Operating Temperature: -40°C to 85°C
- Insulation Resistance: > 10^9 Ω
- Contact Resistance: Initial < 100 mΩ
- Solderability: Compatible with wave and hand soldering, lead-free profiles
- Operating Force: 1.2 N, 1.7 N, 3.5 N options
- Terminal Types: PC pins, Snap-in optionally available
- Dimensions: H1 175 mm, H2 23 mm, H3 20.5 mm, H4 15 mm, H5 13 mm
- Button Colors: Red, White, Black, Gray
- Certification: RoHS compliant
Buy the PVA Short Stroke Key Switch – Reliable Push-Push for Industrial Applications
Discover the rugged and versatile PVA series short stroke key switches, essential for demanding industrial, automotive, and control panel applications. These compact switches provide reliable momentary and push-push operations, with multiple actuator heights, terminal options, and high electrical ratings. Crafted for long-lasting performance with a mechanical life of one million cycles, they are RoHS compliant and compatible with wave and manual soldering. Perfect for control panels, lighting, and air conditioning systems, ensuring reliable operation in challenging environments.
Get PVA series short stroke key switches today—built for precision, durability, and versatile control in industrial settings.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PVA2OAH217NV2?
You can click on the BUY or RFQ button to purchase PVA2OAH217NV2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PVA2OAH217NV2?
You can download the PVA2OAH217NV2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PVA2OAH217NV2?
C&K COMPONENTS
