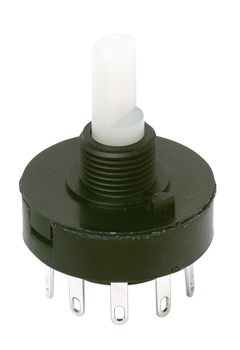

C&K COMPONENTS R20515RS02QE Rotary Switch
The C&K COMPONENTS R20515RS02QE is a robust rotary switch designed for a wide range of applications, including ceiling fans, industrial equipment, and portable tools. It offers multi-pole and multi-position capabilities with a positive detent for reliable operation. The switch is enclosed and supports both panel and PCB mounting, providing flexibility in design. Constructed with 6/6 nylon housing and silver-plated copper contacts, it ensures durability and efficient electrical performance. RoHS compliant, this switch is a dependable solution for various industrial and commercial needs.
C&K COMPONENTS R20515RS02QE Rotary Switch Specifications:
- Contact Rating: 5 AMPS @ 125 V AC; 2.5 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC; 1/8 HP @ 125 and 250 VAC (UL/CSA)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Indexing: 36º-one contact models, 10 position max.; two contact models, 5 position max.
- Housing & Bushing: 6/6 nylon (UL 94V-2)
- Actuator: 6/6 nylon (UL 94V-2)
- Contacts & Terminals: Copper, silver plated
- Contact Spring: Music wire or stainless steel
- Mounting Nut: Steel, zinc plated
- Terminal Seal: Epoxy
- Operating & Storage Temperature: -30ºC to 95ºC
Buy the R20515RS02QE C&K COMPONENTS Rotary Switch | myMectronic
Securely purchase the C&K COMPONENTS R20515RS02QE rotary switch and ensure reliable performance for your applications.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS R20515RS02QE?
You can click on the BUY or RFQ button to purchase R20515RS02QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part R20515RS02QE?
You can download the R20515RS02QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of R20515RS02QE?
C&K COMPONENTS
