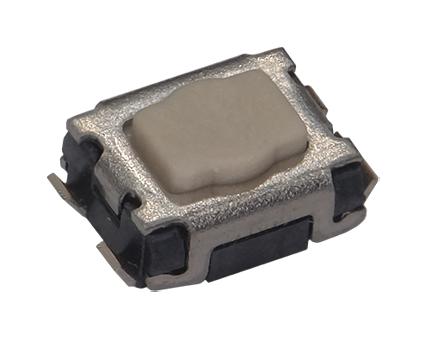

C&K COMPONENTS RKC2SJK170SMTRLFS Microminiature SMT Tact Switch
The RKC2 Series is a microminiature SMT top actuated tact switch designed for space-constrained electronic applications. With a height of only 1.7mm and a compact 3.5 x 2.7mm size, it offers reliable momentary action with a SPST N.O. contact arrangement. Suitable for automotive keyfobs, consumer electronics, and medical devices, it supports actuation forces of 180, 250, 350, and 500 gf. The switch withstands up to 200,000 cycles, with ratings up to 12 VDC, 20 mA, and operates in temperatures from -40°C to 85°C, making it ideal for various high-reliability applications.
C&K COMPONENTS RKC2SJK170SMTRLFS Microminiature SMT Tact Switch Specifications:
- Function: momentary action
- Maximum Voltage: 12 VDC
- Contact Arrangement: SPST N.O.
- Maximum Current: 20 mA
- Contact Resistance: 100 mo
- Travel: 0.15 + 0.1 mm
- Insulation Resistance: 100 MO min.
- Dielectric Strength: 250 VA C (1 minute)
- Bounce Time: < 10 ms
- Operating Temperature: -40°C to 85°C
- Height: 1.7 mm
- Size: 3.5 x 2.7 mm
- Actuation Forces: 180, 250, 350, 500 gf
- Life Cycles: 100,000 to 200,000
- Soldering: Infrared Reflow according to IEC61760-1
- Packaging: 4,000 pieces per reel
Buy the RKC2 Series Tactile Switch: RKC2SJK170SMTRLFS
Order the RKC2SJK170SMTRLFS now and benefit from a highly reliable, compact tact switch designed for demanding environments. With a height of just 1.7mm and 3.5x2.7mm dimensions, it is ideal for automotive, consumer electronics, and medical applications. This switch supports actuation forces of 180, 250, 350, and 500 gf, along with an impressive cycle life of up to 200,000. Its SMT termination ensures easy assembly via infrared reflow, making it an excellent choice for high-volume production of space-efficient electronic devices.
Buy RKC2SJK170SMTRLFS now and experience unmatched reliability and performance for space-saving electronic switches.
