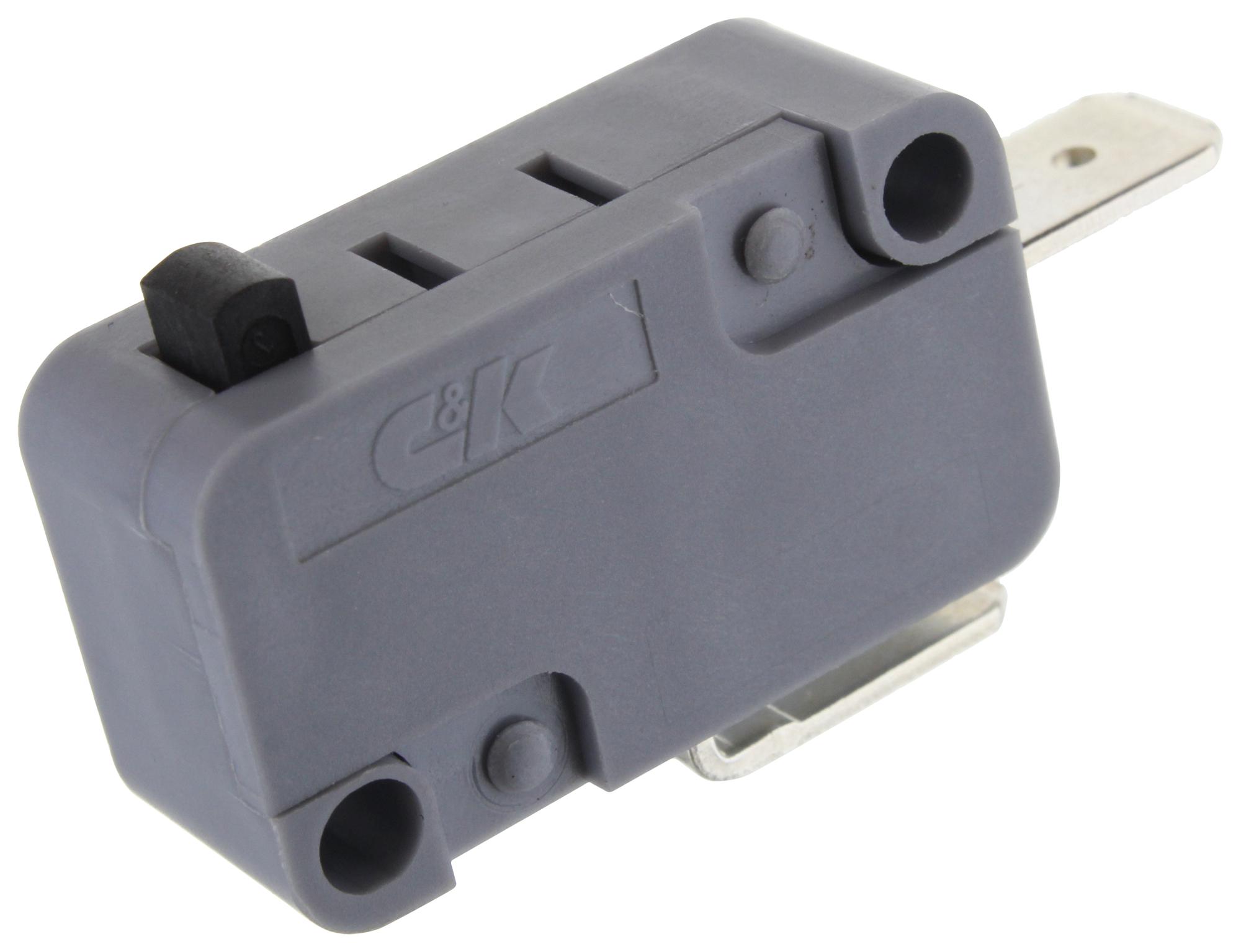

C&K COMPONENTS TF316CFP004AY Miniature Snap-Acting Switch
The TF3 Series miniature snap-acting switches feature full disconnection with a gap greater than 3 mm, rated up to 25 amps at 125/250 volts AC. Crafted with durable PBT housing, these switches offer broad operating force ranges, high electrical and mechanical longevity, and operate efficiently in temperatures from -40°C to 125°C. Suitable for power tools, motor controls, and HVAC systems, they include various actuator styles like pin, lever, and simulated roller, with quick connect terminals for easy installation and reliable performance in demanding industrial applications.
C&K COMPONENTS TF316CFP004AY Miniature Snap-Acting Switch Specifications:
- Contact Rating: 10A to 25A @ 125/250 V AC
- Electrical Life: 10,000 cycles
- Mechanical Life: 500,000 cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1,500 Vrms min. @ sea level
- Operating Temperature: -40°C to 125°C
- Operating Force: Refer to chart for each actuator style
- Mounting: Torque screws 2-5 in/Ibs.
- Switch Housing: PBT
- Cover: PBT
- Actuator Button: Nylon
- Spring: SWP
- Pivot: Copper
- Movable Contacts: Silver Alloy
- Movable Blade: Copper Alloy
- Stationary Contacts: Silver Alloy
- Terminals: Copper
Buy the Industrial Switches 25A 125/250V AC – Reliable TF3 Series for Industrial Applications
Shop the CK Switches TF3 Series miniature snap-acting switches online now and experience reliable performance for industrial applications. With ratings up to 25A at 125/250V AC, broad temperature tolerance from -40°C to 125°C, and various actuator options including pin, lever, and roller styles, these switches are ideal for power tools, motor controls, and HVAC systems. Designed with durable PBT housing, quick connect terminals, and a long electrical and mechanical lifespan, they ensure seamless integration and dependable operation in demanding environments. Buy today for high-quality, industrial-grade switching performance.
Order your CK Switches TF3 Series miniature snap-acting switch today and enhance your power tools, motor controls, and HVAC systems with dependable, high-quality switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TF316CFP004AY?
You can click on the BUY or RFQ button to purchase TF316CFP004AY from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TF316CFP004AY?
You can download the TF316CFP004AY datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TF316CFP004AY?
C&K COMPONENTS
