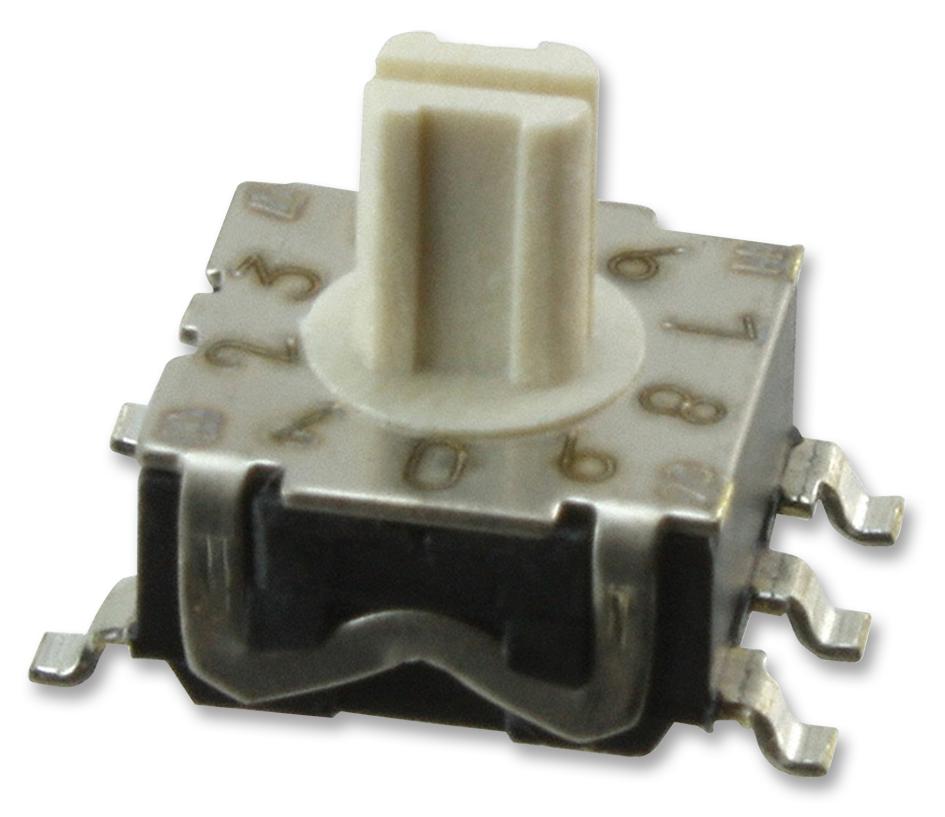

C&K COMPONENTS RTE1002G14 Rotary DIP Switch
The RTE Series Low Profile Rotary DIP Switches are compact, durable switches designed for various industrial applications including timers, automation, alarms, and access control. They feature thru-hole and surface-mount options with miniature size, stainless steel covers, and multiple contact functions like rotary SPDT, SP3T, and SP4T. These switches support binary, decimal, and hexadecimal coding, and comply with RoHS standards. Made from thermoplastic PPS, LCP, and brass contacts with gold or silver plating, they are suitable for high-reliability control systems requiring precise ON/OFF configurations.
C&K COMPONENTS RTE1002G14 Rotary DIP Switch Specifications:
- Contact Rating: Gold: 100 mA max. 30 V DC max., Silver: 100 mA max. 50 V DC max.
- Mechanical Life: RTE02/03: 1,500 actuations; RTE04/10/16: 20,000 actuations
- Contact Resistance: 100 mo initial; 150 mo after life
- Insulation Resistance: RTE02/03: 10^10 Q min.; RTE04/10/16: 10^10 Q min. initial
- Dielectric Strength: RTE02/03: 500 Vrms; RTE10/16: 300 Vrms
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 85°C
- Materials: Thermoplastic PPS cover & base, LCP actuator, brass contacts with gold or silver plating, silicone O-ring
- Terminations: PC mount, right angle, surface mount, with options for ESD protection
- Configuration: Multiple positions (2, 3, 4, 10, 16), with options for pushbutton shaft, extended shaft, flush, or standard
- RoHS Compliant: Yes, with specific material and process considerations
- Solderability: Wave soldering at 260°C/2s, SMT reflow compatible according to CEC 00802-NORM
Buy the CK Components RTE1002G14 – Reliable Rotary DIP Switches for Industrial Applications
Purchase the CK Components RTE1002G14 rotary DIP switch online now to enjoy dependable performance in automation, control panels, alarms, and instrumentation. Our switches feature a compact design, high durability, multiple configuration options, and RoHS compliance, ensuring suitability for demanding industrial environments. Designed with precision-machined contacts and robust thermoplastic housing, these switches provide consistent operation over thousands of cycles. Easily integrated into your control system with PCB mounting and various terminations, order today for fast delivery and trusted quality.
Order your CK Components RTE1002G14 rotary DIP switch today and ensure reliable, precise control in your automation and instrumentation projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS RTE1002G14?
You can click on the BUY or RFQ button to purchase RTE1002G14 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part RTE1002G14?
You can download the RTE1002G14 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of RTE1002G14?
C&K COMPONENTS
