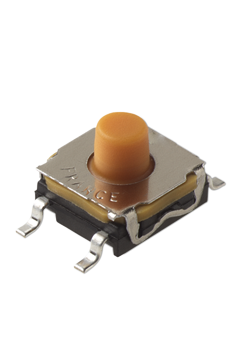

C&K COMPONENTS Y31C31441FPLFS Sealed Tact Switch
The C&K COMPONENTS Y31C31441FPLFS is a sealed tactile switch offering a positive tactile feel and various heights. It's designed for momentary action with a SPST (Single Pole Single Throw) normally open contact configuration. The switch boasts IP67 sealing, providing protection against dust and water ingress, making it ideal for demanding environments. Typical applications include automotive interiors, medical instruments, industrial electronics, and network infrastructure. It is available with J or G terminations for SMT (Surface Mount Technology) assembly. The switch operates within a temperature range of -40°C to 85°C and offers electrical specifications including a maximum power of 1 VA and a dielectric strength of ≥ 250 Vrms.
C&K COMPONENTS Y31C31441FPLFS Sealed Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST, N.O.
- Terminals: J bend & Gullwing type for SMT
- Sealing: IP67 (except KSC5 - IP50)
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -55°C to 85°C
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA (0.1 mA for ultra-low current versions)
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 100mΩ
- Insulation Resistance: ≥ 10M Ω
- Bounce Time: ≤ 1 ms
Buy the Y31C31441FPLFS C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS Y31C31441FPLFS Sealed Tact Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y31C31441FPLFS?
You can click on the BUY or RFQ button to purchase Y31C31441FPLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y31C31441FPLFS?
You can download the Y31C31441FPLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y31C31441FPLFS?
C&K COMPONENTS
