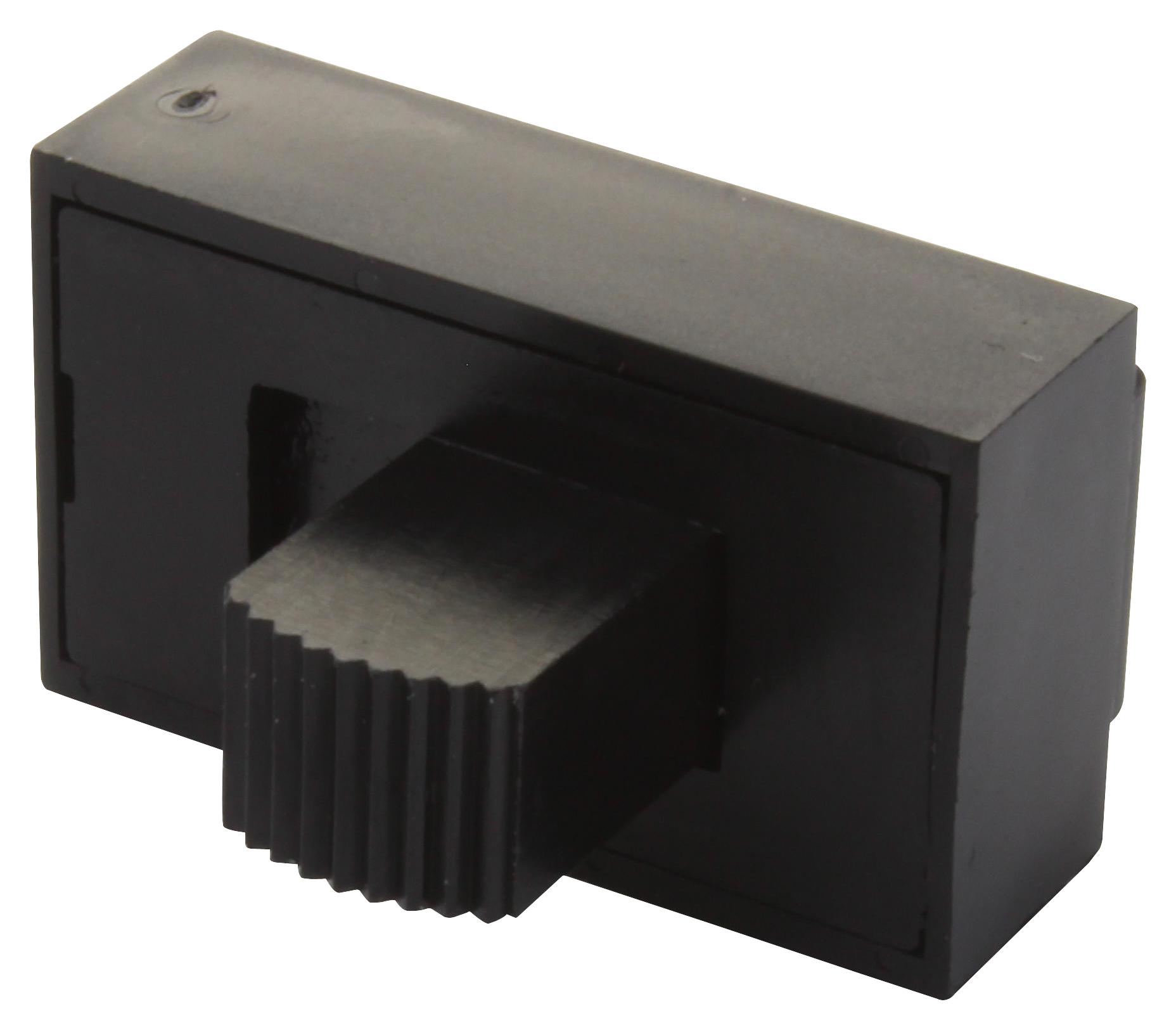

C&K COMPONENTS S102031MS02Q Slide Switch
The C&K COMPONENTS S102031MS02Q slide switch is a versatile component suitable for a range of applications, including portable tools, small appliances, and floor care products. It boasts an enclosed housing for added protection and offers flexible mounting options, including PC and snap-in panel mounting. The switch's reversing option and RoHS compliance enhance its functionality and environmental friendliness. Constructed with durable materials like 6/6 nylon and copper, silver-plated contacts, it ensures reliable performance and longevity. Its design caters to both momentary and maintained operation, making it adaptable to diverse control systems.
C&K COMPONENTS S102031MS02Q Slide Switch Specifications:
- Contact Rating: 6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (Q contact material)
- Housing Material: 6/6 nylon (UL94V-2), black
- Top Plate Material: 6/6 nylon (UL94V-2), black
- Actuator Material: 6/6 nylon (UL94V-2), black (standard)
- Contact Material: Copper, silver plated (Q contact material)
- Terminal Material: Copper, silver plated (Q contact material)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial
- Contact Spring: Music wire or stainless steel
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -30ºC to +65ºC
- Storage Temperature: -30ºC to +85ºC
- Mounting Styles: PC and Snap-in panel mounting
- Available Functions: SPST, DPDT, SPDT, Momentary
Buy the S102031MS02Q C&K COMPONENTS Slide Switch | myMectronic
Purchase the C&K COMPONENTS S102031MS02Q slide switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS S102031MS02Q?
You can click on the BUY or RFQ button to purchase S102031MS02Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part S102031MS02Q?
You can download the S102031MS02Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of S102031MS02Q?
C&K COMPONENTS
