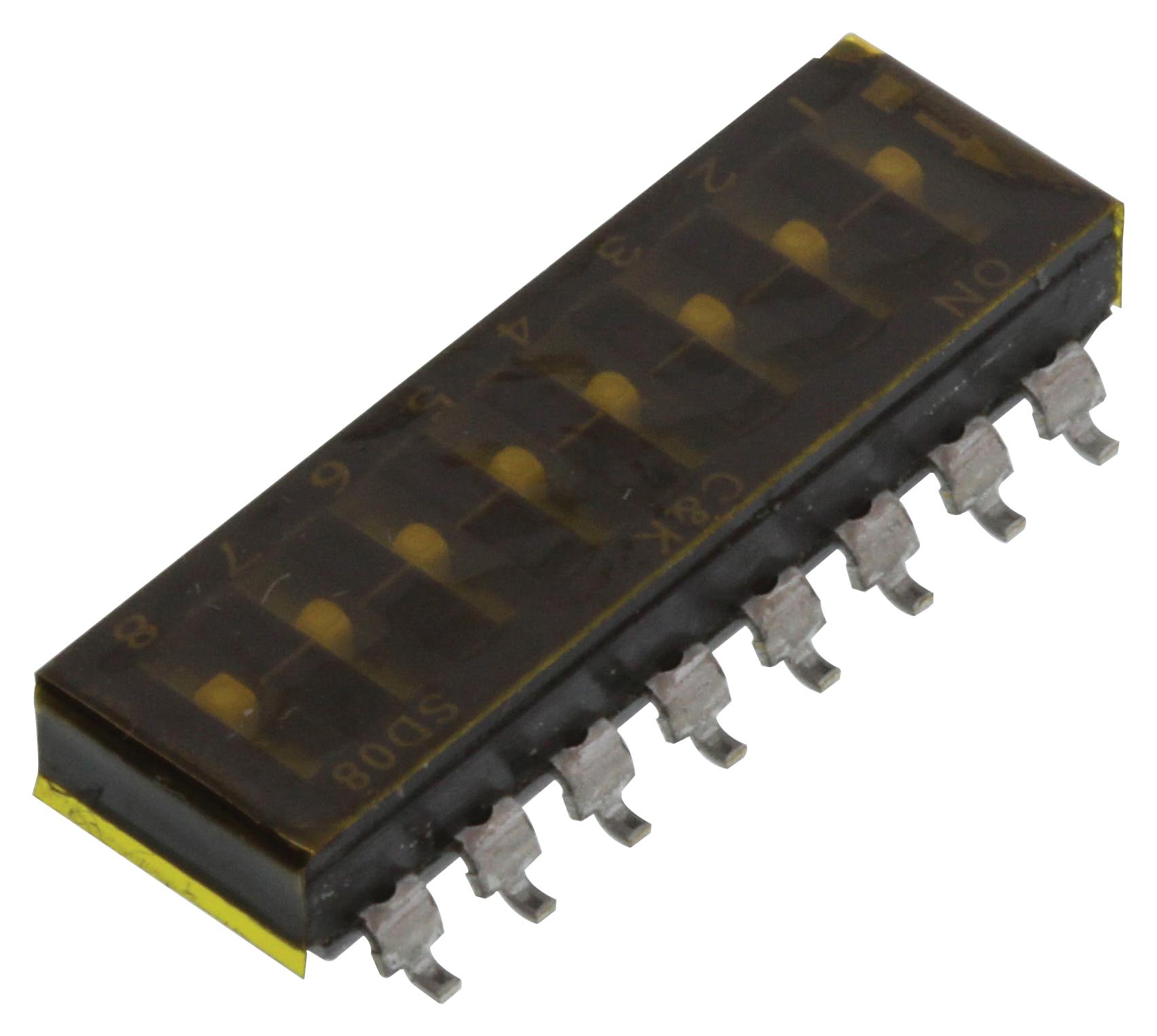

C&K COMPONENTS SD08H0SB Low Profile DIP Switch
High-quality low profile DIP switch with 8 positions, sealed with top tape for durability. Features sealed design, gold-plated contacts, and options for through-hole or surface mount configurations. Ideal for space-saving applications in industrial controls, equipment, and peripheral devices. Suitable for logic switching, address settings, and control functions with high reliability, making it appropriate for soldering, cleaning, and various environmental conditions. Offers multiple actuator options, RoHS compliance, and robust construction for long-term performance in demanding environments.
C&K COMPONENTS SD08H0SB Low Profile DIP Switch Specifications:
- Contact Rating: 0.1 mA @ 5 V DC min to 100 mA @ 25 V DC max.
- Mechanical and Electrical Life: 2,000 cycles at full load.
- Contact Resistance: Below 50 milliohms initially.
- Insulation Resistance: 10^9 ohms minimum.
- Dielectric Strength: 500 V RMS between adjacent terminals.
- Storage Temperature: -40°C to 85°C.
- Operating Temperature: -40°C to 85°C.
- Material: Case & Cover made of flame-retardant PPA (UL 94V-0), Nylon actuators, BeCu contacts with gold plating, tin-plated brass terminals.
- Package: Available in full tubes for thru-hole, tape and reel for surface mount; 85 pieces per tube, 1000 per reel.
- Dimensions: Width varies by configuration, typical actuator travel 0.97 inch, approximate size fitting space constraints, RoHS compliant.
Buy the CK Switches Series SD: Low Profile DIP Switch 8-Position - SD08
Get the CK Series SD08 low profile DIP switch online today for reliable circuit control. Designed with sealed contacts, gold plating, and space-efficient form factor, it’s ideal for industrial controls, logic switching, and address configurations. Featuring robust materials, RoHS compliance, and multiple actuator options, the SD08 ensures long-term durability. With easy ordering options, fast delivery, and high-quality construction, it will seamlessly integrate into your electronic projects, providing dependable operation in demanding environments and contributing to the overall efficiency and reliability of your system.
Order your CK Series SD SD08 low profile DIP switch today and enhance your electronic controls with durable, space-saving design for industrial and peripheral applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SD08H0SB?
You can click on the BUY or RFQ button to purchase SD08H0SB from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SD08H0SB?
You can download the SD08H0SB datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SD08H0SB?
C&K COMPONENTS
