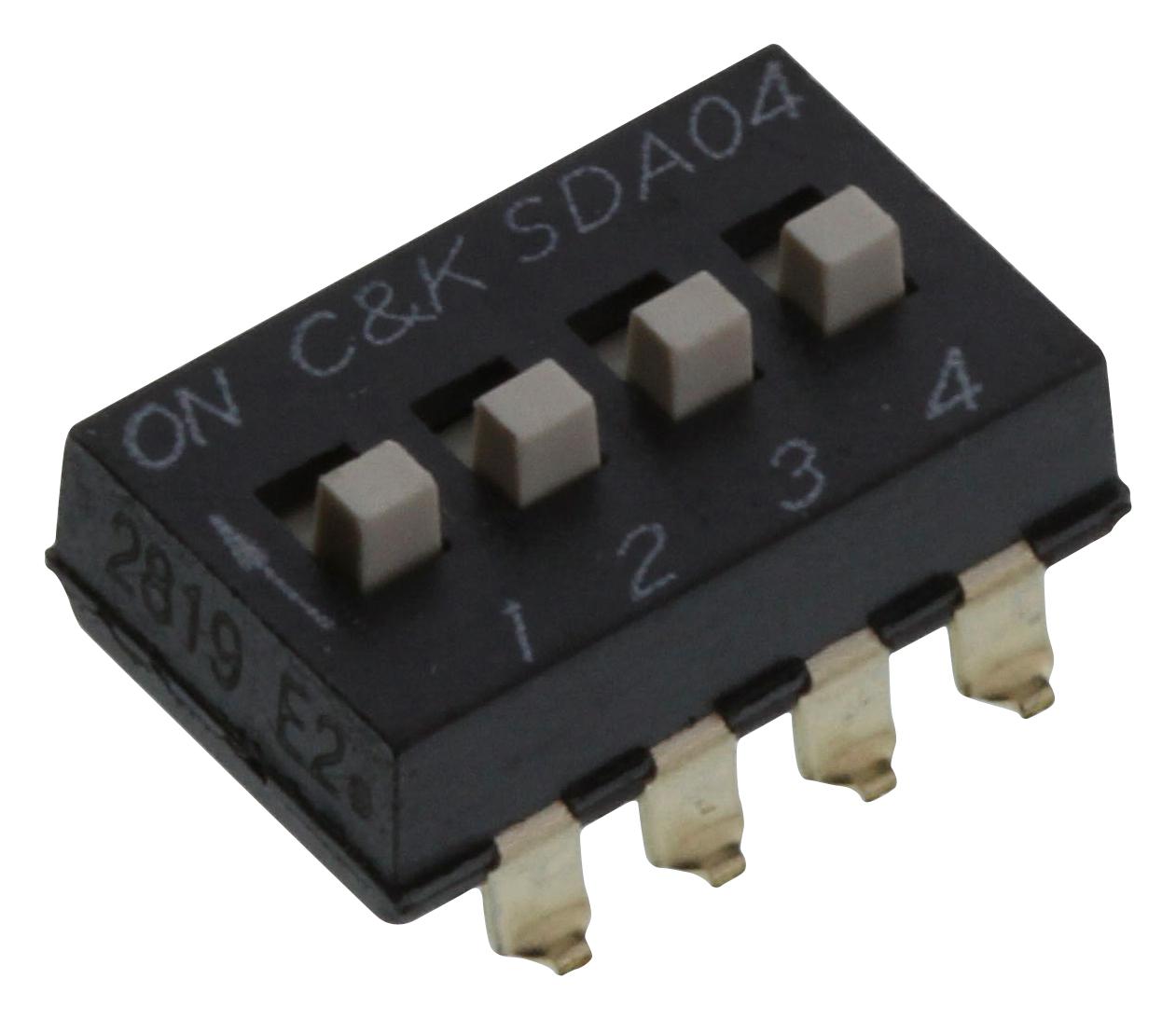

C&K COMPONENTS SDA04H1SBD Low Profile DIP Switch
The SDA Series Low Profile DIP Switches are space-saving, compact switches suitable for industrial address control, logic switching, and function control applications. They feature low profile design, through-hole and surface mount models, and RoHS compliance. Constructed with durable materials like PPS housing, gold-plated contacts, and polyimide tape seal, these switches offer reliable operation with a contact rating of 25 mA at 24 V DC or 100 mA at 5 V DC. They have a mechanical and electrical lifespan of 1,000 cycles, with operating temperature ranges from -40°C to 85°C, making them ideal for various electronic and automation systems.
C&K COMPONENTS SDA04H1SBD Low Profile DIP Switch Specifications:
- CONTACT RATING: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles at rated loads
- CONTACT RESISTANCE: 50 mΩ max. initial
- INSULATION RESISTANCE: 100 MΩ between terminals
- DIELECTRIC WITHSTANDING VOLTAGE: 300 V DC min. for 1 minute
- STORAGE TEMPERATURE: -40°C to 85°C
- OPERATING TEMPERATURE: -40°C to 85°C
- OPERATING FORCE: 800 grams max
- SOLDERABILITY: Dip and look solderability testing per C&K specification #448
- HOUSING: PPS, black (UL94V-0)
- CONTACTS: Gold plated Beryllium copper
- TERMINALS: Gold plate over nickel plated brass
- PACKAGING: Rigid tubes, tape & reel options available
- Material details: PPS housing, PAGT actuator, gold-plated contacts, polyimide tape seal
Buy the Buy C&K SDA Series Low Profile DIP Switch Part Number SDA04H1SBD Online
Order the C&K SDA04H1SBD Low Profile DIP Switch online today to ensure reliable, space-efficient switching for your industrial and electronics projects. This switch offers a sturdy construction, gold-plated contacts, and multiple mounting options including through-hole and surface mount. Designed to withstand harsh environments and operate consistently across -40°C to 85°C temperatures, it is perfect for address controls, logic switching, and function control applications. Buy now for fast delivery and consistent performance in your automation and control systems.
Buy C&K SDA04H1SBD now and enjoy space-saving design with reliable switching performance for your industrial control and electronic switching needs.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA04H1SBD?
You can click on the BUY or RFQ button to purchase SDA04H1SBD from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA04H1SBD?
You can download the SDA04H1SBD datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA04H1SBD?
C&K COMPONENTS
