C&K COMPONENTS SDS002R Detect Switch
The SDS Series Side Actuated Detect Switches are compact, low-profile devices ideal for detector applications in medical, consumer electronics, smart card detection, and telecom systems. They feature a 2mm overtravel, low actuation force of 75 grams, and an operating temperature range of -40°C to +85°C. Constructed with glass-filled LCP bases and nickel silver surface plates, these switches provide reliable contact resistance, high insulation resistance, and a mechanical and electrical life of 50,000 cycles. Available in bulk or tape & reel packaging, they are RoHS compliant and pick & place compatible for easy assembly.
C&K COMPONENTS SDS002R Detect Switch Specifications:
- Contact Rating: 100 mA @ 12 VDC
- Mechanical & Electrical Life: 50,000 cycles
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10 MQ min. @ 100 VDC
- Operating Temperature: -40°C to +85°C
- Solderability: IR compatible, no wash, 260°C max
- Base Material: Glass filled LCP (UL 94V-0)
- Actuator Material: Glass filled LCP (UL94V-0)
- Surface Plate: Nickel silver with silver plate
- Movable Contact Material: Phosphor bronze
- Terminal Material: Phosphor bronze
- Packaging: Bulk or tape & reel (3000 per reel)

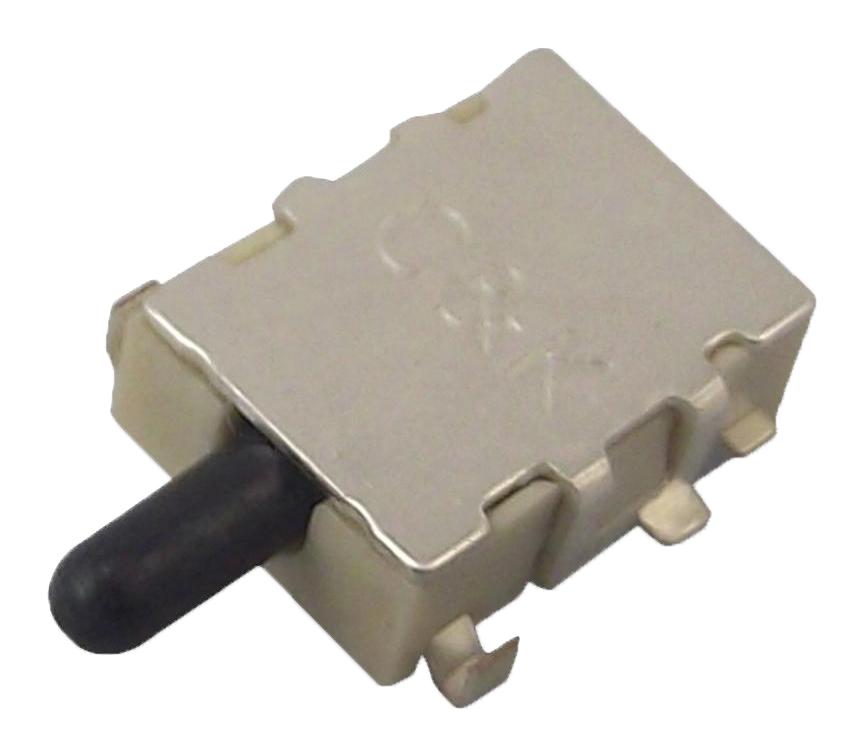

Buy the CkSwitches Series SDS Detect Switch: SDS002R
Discover the reliable SDS Series Detect Switch, designed for precise detection in medical, electronics, and telecom applications. Featuring a 2mm overtravel, low actuation force of 75 grams, and an operating temperature range from -40°C to +85°C, this switch ensures durability with 50,000 cycles lifespan. Made from high-quality glass-filled LCP and nickel silver materials, it supports easy pick & place assembly, complies with RoHS standards, and offers superior contact resistance and insulation. Available in bulk or tape & reel, it’s the perfect choice for precision detection needs.
Order your CkSwitches Series SDS SDS002R detect switch today and enhance your device reliability with high-quality, low-profile detection components.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDS002R?
You can click on the BUY or RFQ button to purchase SDS002R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDS002R?
You can download the SDS002R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDS002R?
C&K COMPONENTS
