C&K COMPONENTS T101MH9AVBE Subminiature Toggle Switch
The T Series Subminiature Toggle Switches are compact, versatile, and suitable for various technical applications, including telecommunications, instrumentation, and medical equipment. These switches feature a durable construction with glass-filled nylon or diallyl phthalate cases, brass actuators, and stainless steel housings, ensuring reliability and resistance to high temperatures. They offer single and double pole models, RoHS compliance, multiple termination options, and a range of actuator styles including vertical, horizontal, and lockable variants. Rated for up to 3 Amps at 120 V AC or 28 V DC, with a long electrical life, these switches are ideal for precise, space-saving control solutions.
C&K COMPONENTS T101MH9AVBE Subminiature Toggle Switch Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC for TX01 models; 2 AMPS for others
- Electrical Life: TX01 models: 60,000 cycles; others: 30,000 cycles
- Contact Resistance: Below 20 mΩ, initial
- Insulation Resistance: ≥ 10^9 Ω
- Dielectric Strength: ≥ 1000 V rms
- Operating Temperature: -30°C to 85°C
- Case Material: Glass filled nylon 6/6 or diallyl phthalate (UL 94V-0)
- Actuator: Brass, chrome plated; Locking levers available
- Housing: Stainless steel
- Terminals: Copper alloy, gold or silver plated
- Seals: Epoxy terminal seal, external O-ring actuator seal
- Hardware: Brass nuts, nickel plated, steel lockwashers
- Mounting: Panel mount or PC through-hole options available
- Protection: IP67 with optional sealing
- Standards: RoHS compliant
- Dimensions: Multiple actuator heights from 0.220” to 0.370”, with threaded and unthreaded options

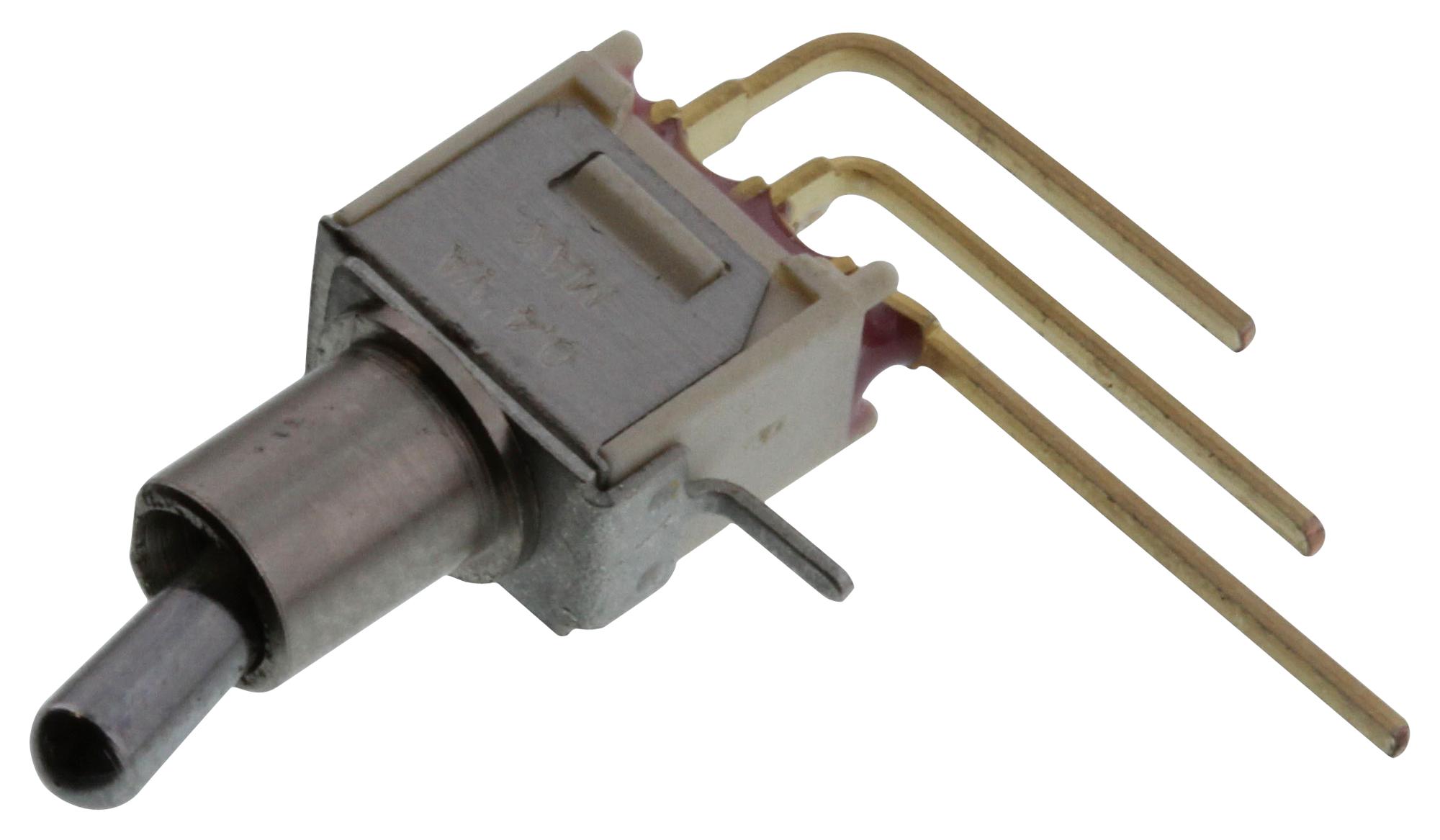

Buy the CK Switches Series T Subminiature Toggle Switches: TO1MH9AVBE
Order CK Switches T Series subminiature toggle switches online now for applications in telecommunications, instrumentation, and medical equipment. These compact, high-performance switches offer rated current up to 3 Amps at 120 V AC or 28 V DC, with long electrical life and robust construction. Available with various actuator styles, mounting options, and RoHS compliance, they ensure reliable operation in space-constrained environments. Purchase today to benefit from quick delivery, technical support, and quality assurance, perfect for precise control and automation projects.
Get CK Switches T Series toggle switch today—designed for high reliability, space-saving control, and long-lasting durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS T101MH9AVBE?
You can click on the BUY or RFQ button to purchase T101MH9AVBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part T101MH9AVBE?
You can download the T101MH9AVBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of T101MH9AVBE?
C&K COMPONENTS
