C&K COMPONENTS T101SHCQE Subminiature Toggle Switch
The T101SHCQE is a high-quality, compact subminiature toggle switch ideal for telecommunications, instrumentation, and medical equipment. It features a durable construction with glass-filled nylon or diallyl phthalate cases, brass chrome-plated actuators, and stainless steel housings, ensuring reliability in demanding environments. The switch supports multiple configurations, including single and double pole models with various actuator options like flat, right-angle, or vertical mountings. It offers RoHS compliance, epoxy terminal seals, and up to 30,000 electrical cycles, making it perfect for precise control applications.
C&K COMPONENTS T101SHCQE Subminiature Toggle Switch Specifications:
- CONTACT RATING: 3 AMPS @ 120 V AC or 28 V DC for TX01 models; 2 AMPS for others
- ELECTRICAL LIFE: 30,000 to 60,000 cycles depending on model
- CONTACT RESISTANCE: Below 20 mΩ initially @ 2-4 V DC, 100 mA
- INSULATION RESISTANCE: 10⁹ Ω minimum
- DIELECTRIC STRENGTH: 1000 V rms at sea level
- OPERATING TEMPERATURE: -30°C to 85°C
- CASE: Glass-filled nylon 6/6 or diallyl phthalate, flame-retardant, heat-stabilized
- ACTUATOR: Brass, chrome plated
- HOUSING: Stainless steel
- END CONTACTS: Copper alloy, gold or silver plated
- SEAL: Epoxy terminal seal
- DIMENSIONS: Actuator height from 0.210” to 0.370”, diameter from 0.190” to 0.250”, various mounting options including PC thru-hole and panel mount

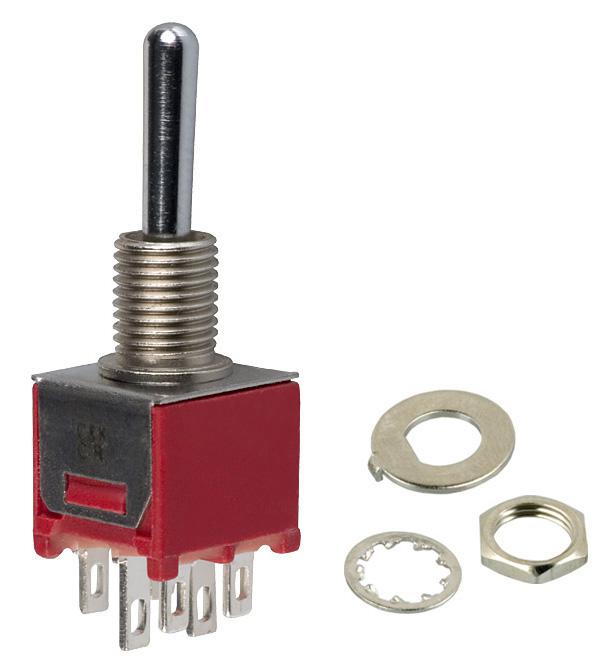

Buy the Buy CKSwitches Toggle Switch Part Number T101SHCQE Online
Purchase the CKSwitches T101SHCQE subminiature toggle switch online today to enjoy fast delivery, competitive pricing, and a product optimized for telecommunications, instrumentation, and medical applications. Its robust construction, multiple mounting options, and RoHS compliance ensure long-lasting performance. This switch is suitable for controlling circuits in compact electronic devices, offering 30,000 to 60,000 electrical cycles. Order now to enhance your project with a reliable switch engineered for precise and dependable operation in demanding operational environments.
Buy CKSwitches T101SHCQE now and experience unmatched reliability and precise control with durable, compact toggles designed for demanding environments.
