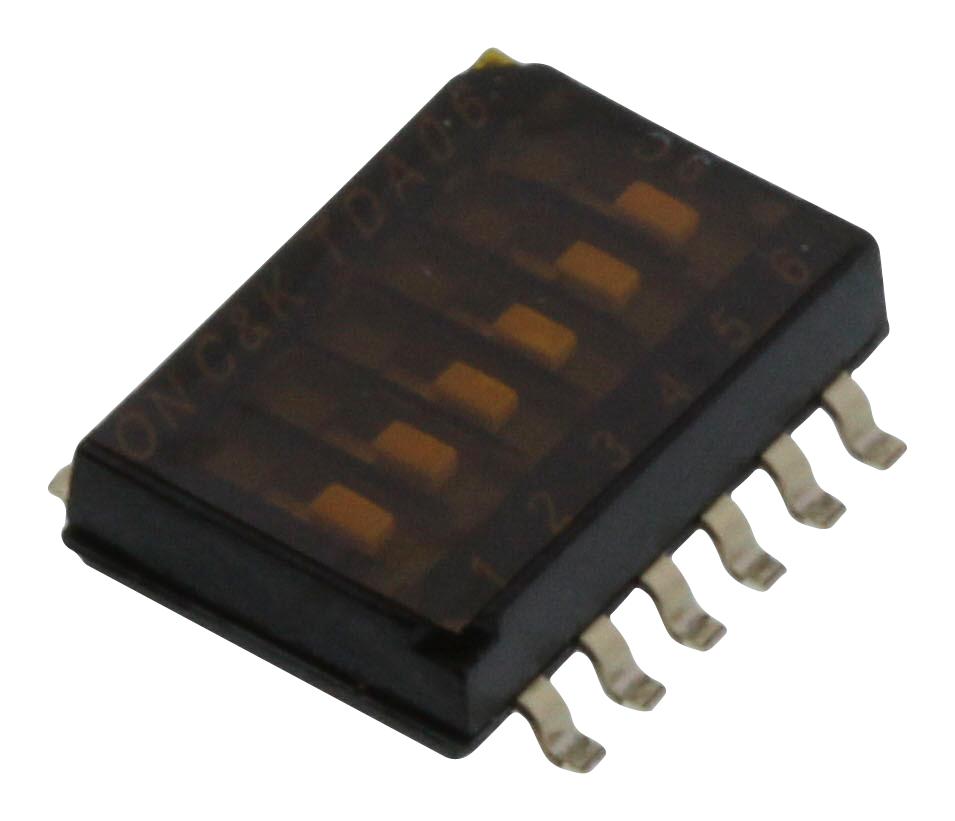

C&K COMPONENTS TDA06H0SB1R Miniature Surface Mount DIP Switch
The TDA Series ultra-miniature surface mount half-pitch DIP switches feature bifurcated contacts for increased electrical reliability and are process sealed for surface soldering and washable processing. Suitable for portable devices, instrumentation, and control applications, they support SPST configurations with 2, 4, 6, 8, and 10 positions. Made with PPS and LCP materials, with copper alloy contacts plated in gold over nickel, these switches offer a contact rating of 24 VDC at 25 mA, and have a mechanical and electrical life of 1,000 cycles. They are RoHS compliant and supplied in tubes or tape and reel packages.
C&K COMPONENTS TDA06H0SB1R Miniature Surface Mount DIP Switch Specifications:
- Switch Function: SPST — 2, 4, 6, 8 & 10 positions
- Contact Rating: 24 VDC, 25 mA (switching); 50 VDC, 100 mA (steady state)
- Mechanical & Electrical Life: 1,000 cycles
- Contact Resistance: 100 milliohms max
- Insulation Resistance: 100 megohms @ 100 V DC min
- Dielectric Strength: 300 V AC min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 4.9 N max
- Materials: PPS case & cover, LCP actuator, copper alloy contacts with gold plating
- Packaging: Tubes (full tube quantities), Tape & reel for bulk storage
Buy the CK Components Series TDA Ultra-miniature DIP Switches: TDA06H0SB1R
Purchase the CK Components TDA06H0SB1R ultra-miniature surface mount DIP switch online for reliable switching performance in portable devices, instrumentation, and control applications. Featuring sealed construction, gold-plated contacts, and multiple positions, it ensures durability and high electrical reliability. Suitable for surface soldering with RoHS compliance, this switch offers a contact rating of 24 VDC at 25 mA and a life cycle of 1,000 cycles. Order now and benefit from fast delivery and quality assurance, making it ideal for space-constrained applications.
Get CK Components TDA06H0SB1R today—built for precision and long-lasting durability in portable electronics and control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TDA06H0SB1R?
You can click on the BUY or RFQ button to purchase TDA06H0SB1R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TDA06H0SB1R?
You can download the TDA06H0SB1R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TDA06H0SB1R?
C&K COMPONENTS
