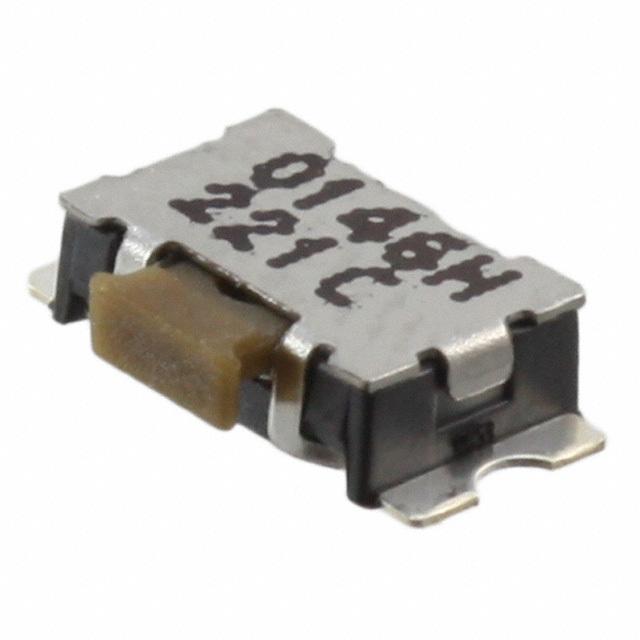

C&K COMPONENTS Y39A22110FP Subminiature SMT Switch
The C&K COMPONENTS Y39A22110FP is a subminiature Surface Mount Technology (SMT) tactile switch designed for space-constrained applications. This switch offers a low profile of just 1.7mm, providing excellent tactile feedback and high shear force. It is RoHS compliant and suitable for use in cellular phones, industrial electronics, and health diagnostic equipment. The switch features momentary action and gullwing terminals for easy integration into PCB designs. Available with silver or gold contacts, it provides reliable performance in a compact form factor.
C&K COMPONENTS Y39A22110FP Subminiature SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: N.O.
- Terminals: Gullwing
- IP Rating: IP40
- Overload: 20N
- Tactile Feeling: 2 and 4N: 25% min., 2.5N: 30% min.
- Operating Life: 100,000 operations
- Travel: 0.3± 0.15mm
- Maximum Power: 1 VA (Silver), 0.2 VA (Gold)
- Maximum Voltage: 32 VDC
- Maximum Current: 50 mA (Silver), 10 mA (Gold)
- Minimum Current: 1 mA (Silver), 1 mA (Gold)
- Dielectric Strength: ≥ 250 VDC
- Contact Resistance: < 100 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: < 3 ms
- Operating Temperature: -40˚C to 85˚C (Silver), -40˚C to 125˚C (Gold)
- Storage Temperature: -55˚C to 85˚C (Silver), -55˚C to 125˚C (Gold)
- Packaging: Tape and reels in reels of 3,000 pieces, External diameter 330mm ± 2mm
