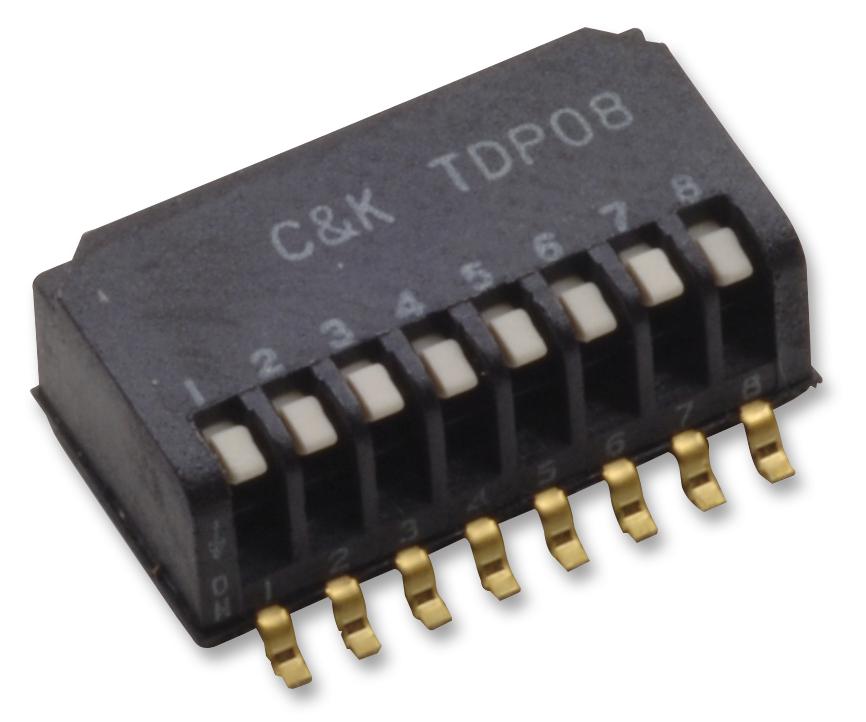

C&K COMPONENTS TDP08H0SBD1 Surface Mount DIP Switch
The TDP series ultra-miniature surface mount side-actuated DIP switches are designed for compact electronic applications, featuring an SPST configuration with 2, 4, 6, 8, or 10 positions. Made from glass-filled PPS with gold-plated copper alloy contacts, these switches are suitable for surface mount soldering and washable processing. They operate within -40°C to 85°C, offer a mechanical and electrical lifespan of 1,000 cycles, and are RoHS compliant, making them ideal for portable, handheld, instrumentation, and control devices requiring reliable on/off switching in a small form factor.
C&K COMPONENTS TDP08H0SBD1 Surface Mount DIP Switch Specifications:
- Switch Function: SPST — 2, 4, 6, 8, 10 positions
- Case & Cover Material: glass filled PPS (UL94V-0)
- Contact Rating: 24V DC, 25 mA; 50 VDC, 100 mA
- Contact Material: Copper alloy with gold overlay over nickel
- Mechanical & Electrical Life: 1,000 cycles
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ @ 100 V DC min
- Dielectric Strength: 300 V AC min
- Storage & Operating Temperature: -40°C to 85°C
- Operating Force: max 4.9N
- Solderability: MIL-STD-202F method 208D or EIA RS-186E method 9
- Packaging: Full tube quantities, tape and reel available
- Dimensions: 0.050 inch (1.27 mm) typical thickness, with various actuator options
Buy the Brand PartNumber – Reliable Surface Mount Switches for Industrial Applications
Discover the TDP series ultra-miniature surface mount DIP switches, perfect for compact and efficient electronic designs. With gold-plated contacts, multiple positions, and sealed for surface mount soldering, these switches are ideal for portable, handheld, instrumentation, and control devices. Operating reliably within -40°C to 85°C and rated for 1,000 cycles, they ensure long-term performance. Available in various configurations, they simplify assembly with tape or tube packaging. Buy online now for trusted quality and seamless integration into your projects.
Get TDP series switches today—built for precision, durability, and space-saving surface mount integration.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TDP08H0SBD1?
You can click on the BUY or RFQ button to purchase TDP08H0SBD1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TDP08H0SBD1?
You can download the TDP08H0SBD1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TDP08H0SBD1?
C&K COMPONENTS
