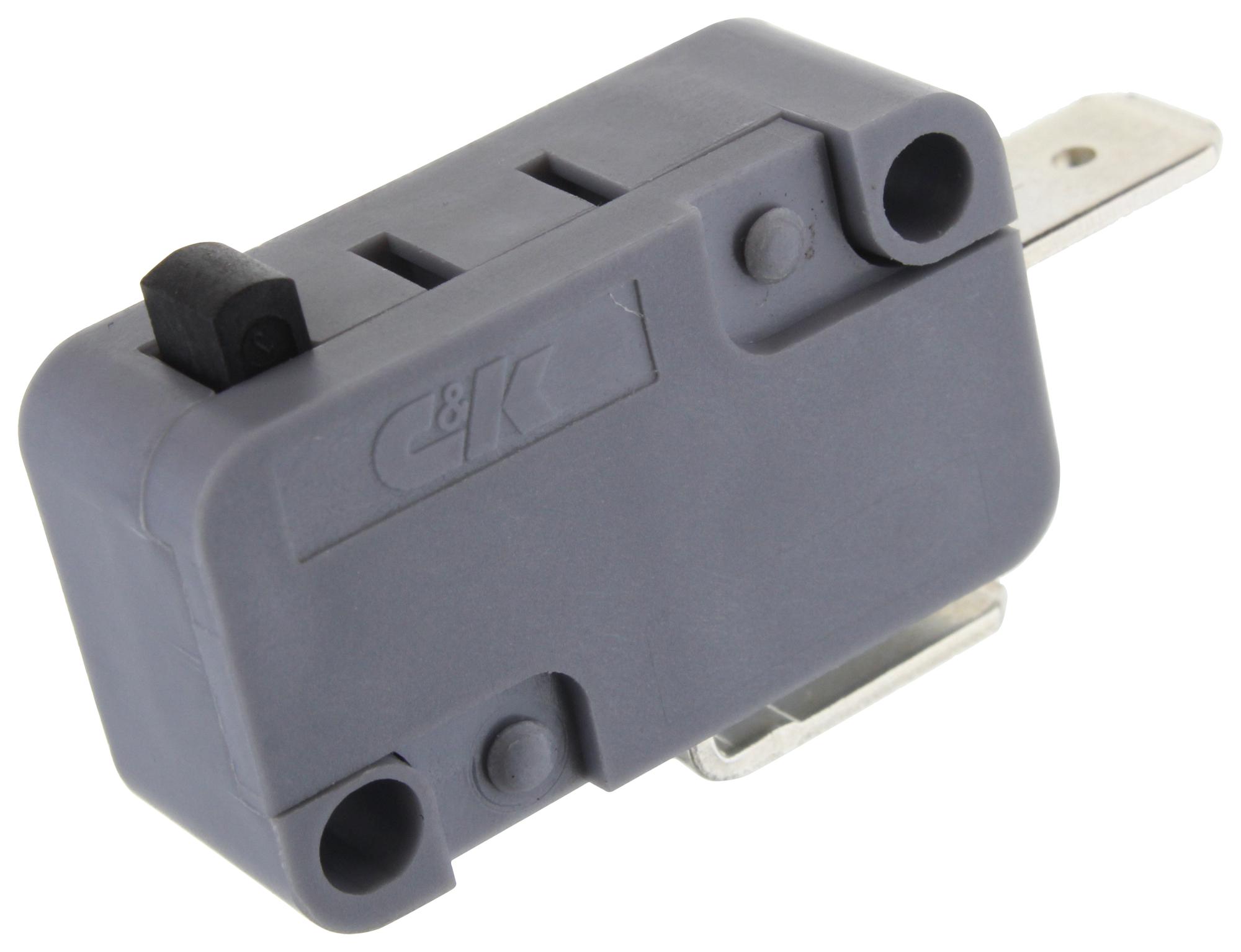

C&K COMPONENTS TF316CFA104AY Miniature Snap-acting Switch
The TF3 Series miniature snap-acting switches are designed for full disconnection with a gap exceeding 3 mm. They feature various actuator styles, broad operating force ranges, and ratings up to 25 AMPS, suitable for heavy-duty power tools and motor controls. The switches operate reliably from -40°C to 125°C and incorporate durable PBT housing, silver alloy contacts, and copper components for enhanced performance. Selectable actuators include pin plungers, levers, simulated rollers, and roller levers, all mountable with torque screws. Certified for UL61058-1 compliance, these switches assure safety and durability in demanding industrial applications.
C&K COMPONENTS TF316CFA104AY Miniature Snap-acting Switch Specifications:
- Contact Rating: 10A to 25A at 125/250 V AC
- Electrical Life: 10,000 cycles
- Mechanical Life: 500,000 cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1,500 Vrms min.
- Operating Temperature: -40°C to 125°C
- Operating Force: varies with actuator style
- Mounting: Torque screws 2-5 in/Ibs.
- Housing: PBT material
- Actuator Materials: Nylon, Copper, Silver Alloy
- Certifications: UL61058-1
- Applicable for heavy-duty power tools & motor controls
- Actuator options: Pin plunger, lever, roller lever
- Quick connect terminations: .187” and .250”
Buy the Buy Switches TF3 Series Part Number TF316CFA104AY Online
Enhance your automation and power control systems by purchasing the high-quality TF3 Series miniature snap-acting switch online. Designed for reliability, these switches feature various actuator options including pin plungers, levers, and rollers, supporting high current ratings up to 25A at 125/250 V AC. Suitable for industrial equipment, heavy-duty power tools, and motor controls, they operate reliably from -40°C to 125°C. UL61058-1 certified, these switches ensure safety and durability, with easy mounting and quick connect features for efficient installation. Get yours today for dependable performance in demanding environments.
Order your Switches TF3 Series TF316CFA104AY today and give your projects the dependable quality they deserve with quick connect terminals.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TF316CFA104AY?
You can click on the BUY or RFQ button to purchase TF316CFA104AY from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TF316CFA104AY?
You can download the TF316CFA104AY datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TF316CFA104AY?
C&K COMPONENTS
