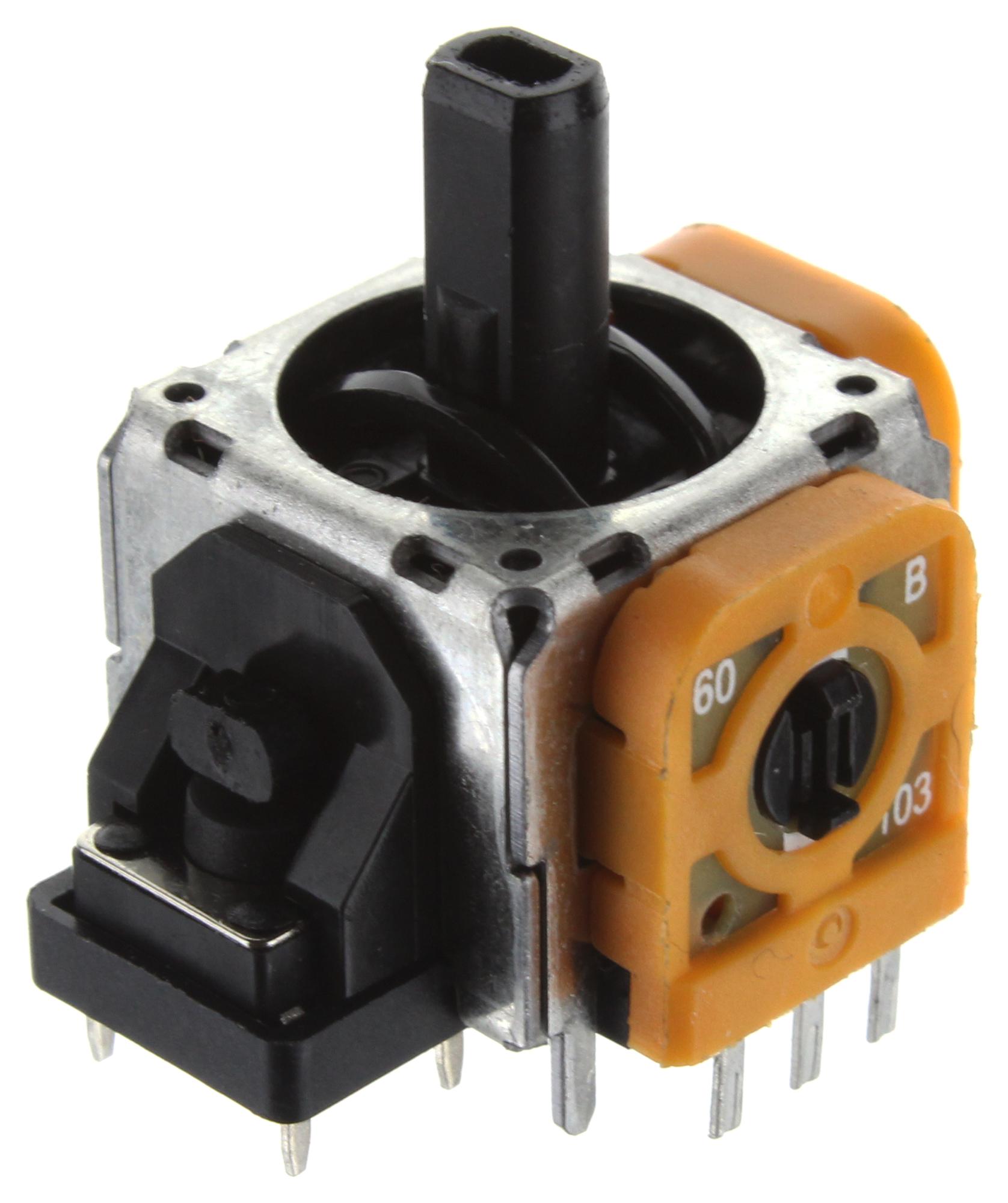

C&K COMPONENTS THB001P Miniature Control Stick
The THB Series thumbstick is a compact, multi-directional control device designed for gaming, industrial, and heavy equipment applications. It features a 2-axis operation with a life cycle of 2,000,000 cycles for toggle switches and a rated voltage of 50 VAC or 5 VDC. With a full stroke actuation stop strength exceeding 3.1 kgf, precision in operation is assured. Ideal for navigation control, remote control vehicles, and industrial machinery, it offers high durability, accurate return positioning within 3°, and a temperature range from -10°C to +70°C. The device includes PCB installation holes, a toggle angle of 30° to 36°, and resistance potentiometers of 10kΩ with 20% tolerance.
C&K COMPONENTS THB001P Miniature Control Stick Specifications:
- Total Resistance (Potentiometers): 10kΩ + 20% initial
- Pattern of Actuator Movement: Toggle cross-wide, within +20% of initial values for 10,000 cycles
- Full Stroke Actuation Stop Strength: > 3.1 kgf
- Rated Voltage: 50 VAC or 5 VDC (8 seconds minimum)
- Rated Power: 0.05 A @ 12 VDC
- Actuation Force: 160 +/- 40 gf (19 +/- 5 mN·m of Torque)
- Contact Noise: < 10% of operating voltage
- Insulation Resistance: > 100 MΩ
- Withstanding Voltage: No arcing or breakdown
- Operating Life: 2,000,000 cycles minimum thumbstick toggle
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -30°C to +80°C
- Mechanical Dimensions: PCB installation holes, rocker head dimension > 7.1 mm
- Design Features: 2-axis, multi-directional, miniature size, with center select switch
- Environmental Ratings: Durable for industrial environments
- Max Toggle Angle of Operation: 30° to 36°
Buy the CkSwitches THB001P – Reliable Thumbstick for Industrial Applications
Order the CkSwitches THB001P miniature control stick today online for seamless integration into your gaming, industrial, or remote control projects. This durable thumbstick offers high cycle life exceeding 2 million cycles, precise multi-directional movement, and reliable performance in harsh environments. Its compact design with PCB mounting holes makes installation straightforward, ensuring stability and accuracy during operation. Enhance your control devices with this highly durable and sensitive thumbstick, perfect for navigation, heavy equipment, or remote vehicle control. Buy online now to experience excellence in control component technology.
Get CkSwitches THB001P today—built for precision and long-lasting durability in industrial and gaming control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS THB001P?
You can click on the BUY or RFQ button to purchase THB001P from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part THB001P?
You can download the THB001P datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of THB001P?
C&K COMPONENTS
