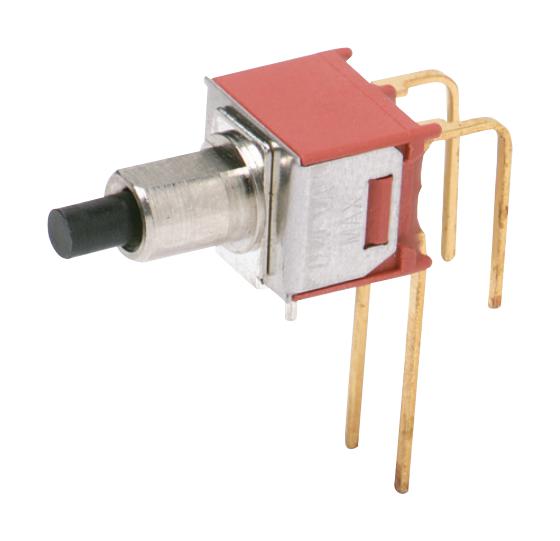

C&K COMPONENTS TP12SH8AVBE Miniature Pushbutton Switch
The TP12SH8AVBE is a compact, industrial-grade miniature pushbutton switch offering reliable switching capabilities up to 1 AMP. It features a right-angle, PC through-hole mounting design with epoxy terminal seal compatibility for bottom wash cleaning. The switch supports various actuator options, including threaded, unthreaded, flat, and snap-in frames, with RoHS compliance. Made of durable nylon, brass, stainless steel, and copper alloy, it is suitable for telecommunications, networking, and computer peripheral applications, with a voltage rating of up to 120 V AC/DC and operating temperature from -30°C to 85°C.
C&K COMPONENTS TP12SH8AVBE Miniature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC
- Electrical Life: 30,000 cycles
- Contact Resistance: Below 20 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω within 15 min
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - Glass-filled nylon, Bushings - Brass, Nickel plated, Housing - Stainless steel, Contacts - Copper alloy with gold or silver plating
- Termination: Epoxy seal, PC thru-hole mounting
- Dimensions: Length varies with actuator, typically around 0.155 - 0.215 inches high plunger, 0.220 - 0.310 inches high bushings, diameter approx. 0.200 - 0.240 inches
- RoHS compliant models available
Buy the Ck Switches TP12SH8AVBE – Reliable Miniature Pushbutton for Industrial Applications
Purchase the Ck Switches TP12SH8AVBE online today and ensure your industrial, telecom, or networking project benefits from high-quality, durable, and RoHS compliant switching solutions. This miniature pushbutton switch offers robust performance with a 1 AMP contact rating and epoxy terminal seal for easy bottom wash cleaning. Its versatile right-angle, PC thru-hole mounting design allows seamless integration into various panels and control systems. Ideal for applications requiring reliable switch operation at temperatures from -30°C to 85°C, ensuring long-lasting service life and optimal functionality in challenging environments.
Buy Ck Switches TP12SH8AVBE now and experience unmatched reliability and performance in your applications, perfect for networking, telecom, and control panels.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP12SH8AVBE?
You can click on the BUY or RFQ button to purchase TP12SH8AVBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP12SH8AVBE?
You can download the TP12SH8AVBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP12SH8AVBE?
C&K COMPONENTS
