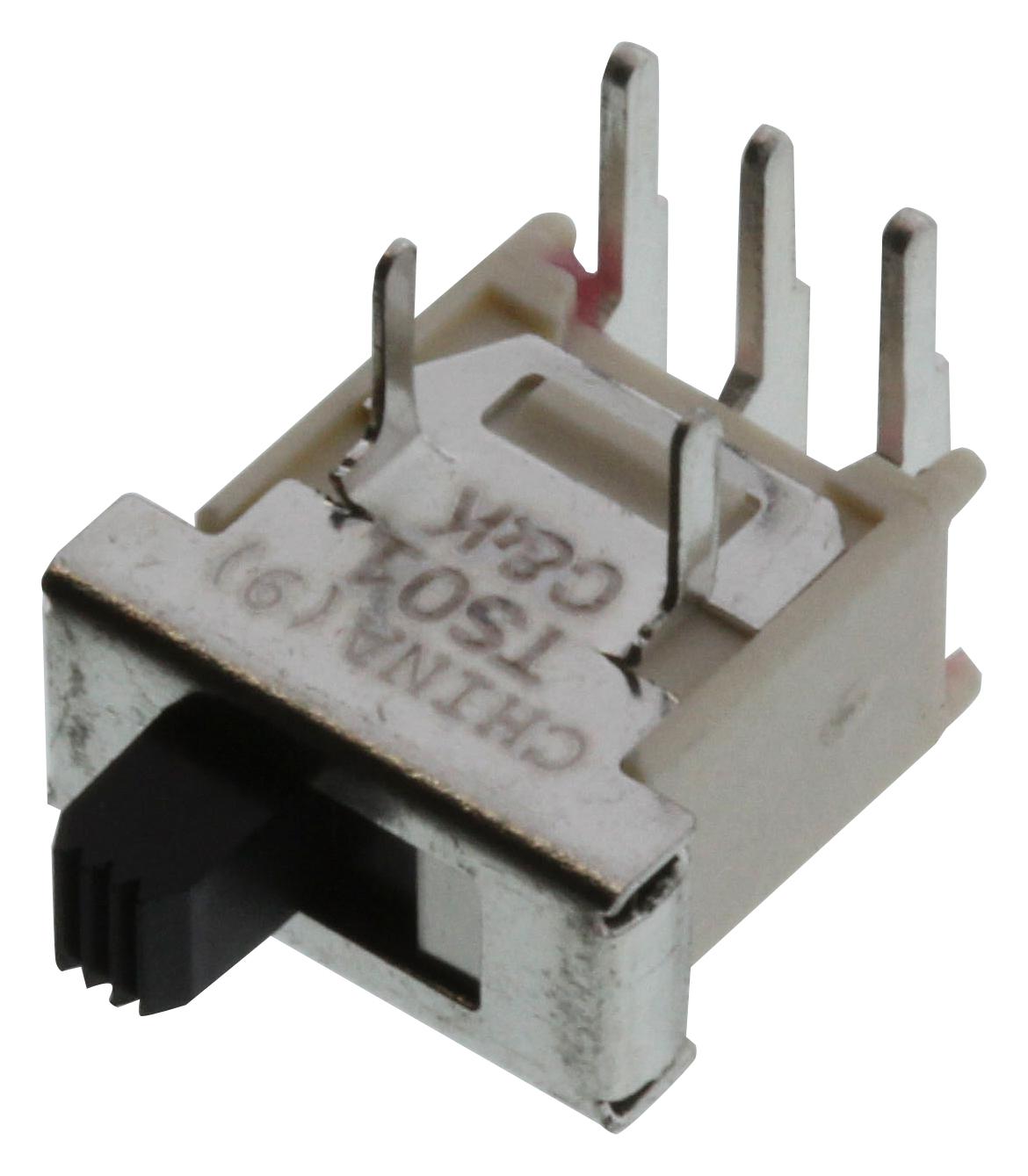

C&K COMPONENTS TS01AQE Tiny Slide Switches
Tiny slide switches designed for reliable performance in electronic and industrial applications, featuring epoxy terminal seals, RoHS compliance, and ratings up to 3 amps. Available in multiple configurations with gold, silver, and epoxy contact materials. They offer long electrical life, with models supporting from 30,000 to 60,000 cycles, and operate within a temperature range of -30°C to 85°C. Suitable for test & measurement equipment, computers, telecommunications, and networking devices. The switches have epoxy-sealed terminals, stainless steel housings, and options for PC or wire wrap terminations, ensuring durability and versatile installation.
C&K COMPONENTS TS01AQE Tiny Slide Switches Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC for TS02, TS03 Models; 0.4 VA max. @ 20 V AC or DC for B contact material.
- Electrical Life: TS01 Models: 60,000 cycles; TS02 & TS03 Models: 30,000 cycles.
- Contact Resistance: Below 20 milliohms.
- Insulation Resistance: 10^9 ohms min.
- Dielectric Strength: 1,000 V min. @ sea level.
- Operating Temperature: -30°C to 85°C.
- Housing Material: Glass filled nylon, flame retardant, heat stabilized.
- End Contacts: Copper alloy, gold or silver plated; Q contact material: Coin silver, silver plated.
- Terminal Seal: Epoxy.
- Dimensions: Size varies; standard models include PC thru-hole and wire wrap options.
- RoHS Compliant: Yes, with models featuring G, Q, R, S contact materials.
- Solderability: Meets MIL-STD-202F method 208D or EIA RS-186E method.
Buy the Generic TS01 – Reliable Electronic Slide Switches for Industrial Applications
Order Tiny Slide Switches online today and benefit from durable epoxy seals, RoHS compliance, and ratings up to 3 amps. These reliable switches are suitable for test & measurement, computers, telecommunications, and networking equipment, offering long electrical life and multiple termination options. Designed with epoxy terminal seals, stainless steel housings, and a temperature range of -30°C to 85°C, they ensure durability and versatile installation. Enhance your electronic devices with high-quality, tested switch solutions available for easy purchase online.
Buy Generic TS01 now and experience unmatched reliability and performance in electronic switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TS01AQE?
You can click on the BUY or RFQ button to purchase TS01AQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TS01AQE?
You can download the TS01AQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TS01AQE?
C&K COMPONENTS
