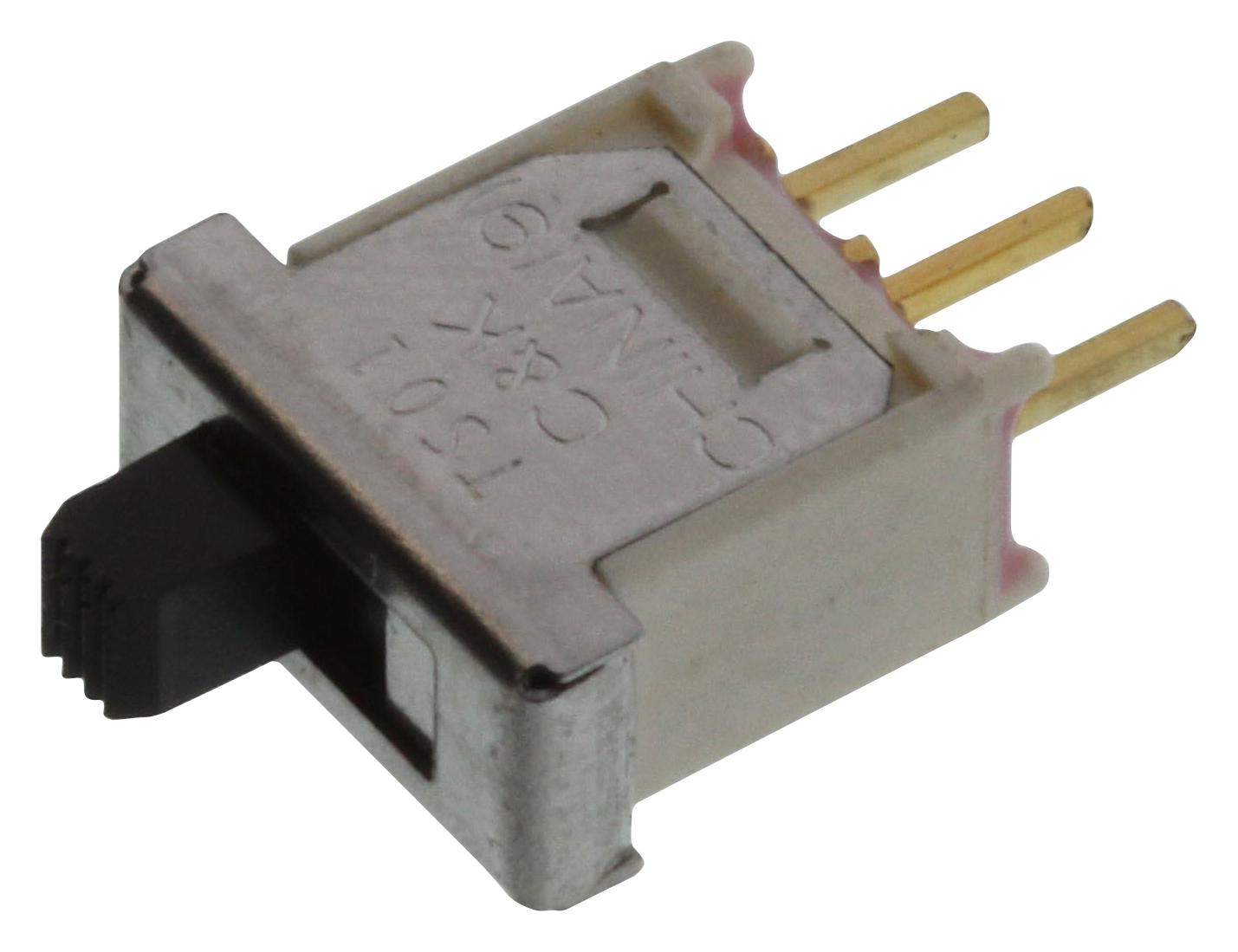

C&K COMPONENTS TS01CBE Tiny Slide Switch
The TS Series Tiny Slide Switches are reliable, epoxy-sealed components designed for precise control applications. Featuring stainless steel housings and gold or silver contact materials, these switches support ratings up to 3 amps and 120 V AC/DC. Their robust construction ensures long electrical life, with TS01 models rated for 60,000 cycles, and TS02/TS03 models for 30,000 cycles. Suitable for test equipment, control panels, and communication devices, they provide excellent insulation resistance and durability across temperature ranges from -30°C to 85°C, with options for epoxy or epoxy-sealed splashproof seals.
C&K COMPONENTS TS01CBE Tiny Slide Switch Specifications:
- Contact Rating: 3 AMPS @ 120 V AC/DC (TS01), 1 AMP @ 120 V AC/DC (TS02 and TS03)
- Electrical Life: 60,000 cycles (TS01), 30,000 cycles (TS02, TS03)
- Housing Material: Stainless steel or nickel-plated stainless steel
- Contact Material: Copper alloy with gold or silver plating
- Insulation Resistance: 10^9 ohms min.
- Dielectric Strength: 1,000V min. @ sea level
- Operating Temperature: -30°C to 85°C
- Sealing: Epoxy terminal seal, splashproof optional
- Dimensions: Refer to detailed technical diagrams, typical length approximately 1.63 inches with PC thru-hole or wire wrap options
- Termination Options: PC thru-hole, right angle PC, wire wrap
- Compliance: RoHS compliant with contact materials G, Q, R, S, P variants
Buy the Buy Reliable Tiny Slide Switches Part Number TS01CBE Online
Purchase the TS Series Tiny Slide Switches TS01CBE online to benefit from reliable electrical performance, epoxy sealing, and versatile termination options. These switches support ratings up to 3 amps and are suitable for control panels, test & measurement equipment, and communication devices. With long electrical life ratings of up to 60,000 cycles for TS01 models and standard RoHS compliance, they are ideal for demanding industrial and electronic applications. Order now to ensure durability and precision in your projects.
Buy TS Series Tiny Slide Switches TS01CBE now and experience unmatched reliability and performance for control and test applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TS01CBE?
You can click on the BUY or RFQ button to purchase TS01CBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TS01CBE?
You can download the TS01CBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TS01CBE?
C&K COMPONENTS
