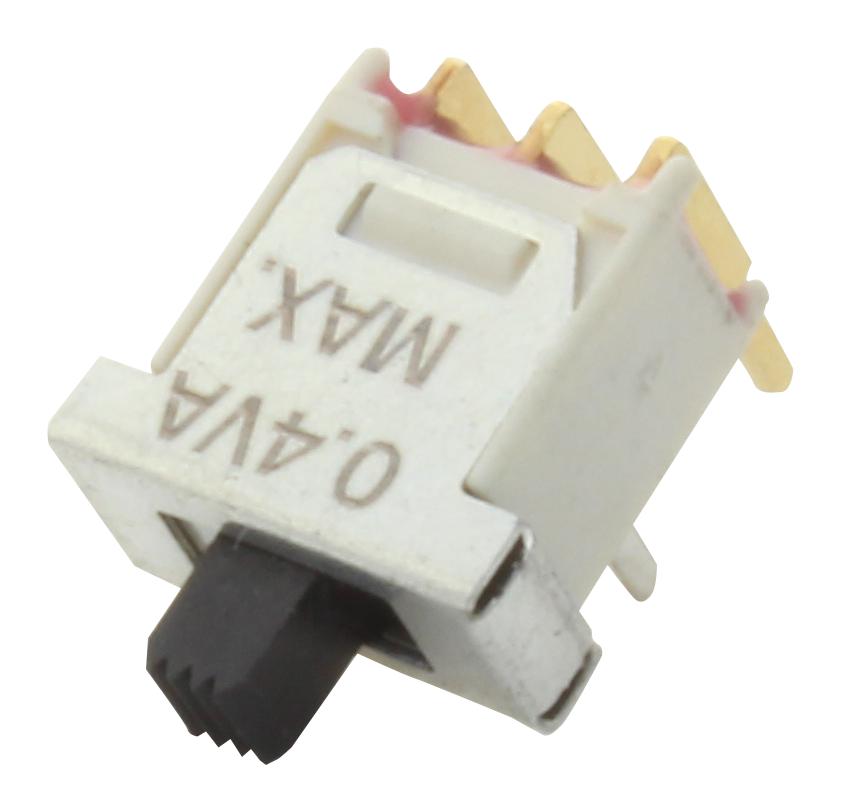

C&K COMPONENTS TS03ABE Tiny Slide Switches
The TS Series Tiny Slide Switches are compact, reliable components designed for various electronic applications, including test equipment, computers, and networking devices. Featuring a robust epoxy terminal seal, multiple contact materials like gold, silver, and matte-tin, and configurations such as SPDT and SPST, these switches have rated currents up to 3 AMPS and operate within -30°C to 85°C. They offer high electrical life, low contact resistance, and compatibility with all bottom-wash PCB cleaning methods, making them ideal for industrial and telecommunications equipment requiring durable, precise switching solutions.
C&K COMPONENTS TS03ABE Tiny Slide Switches Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC for TS02, TS03 Models; 0.4 VA max. @ 20V AC/DC for B contact material.
- Electrical Life: TS01 Models 60,000 cycles; TS02, TS03 Models 30,000 cycles.
- Contact Resistance: Below 20 mΩ initial.
- Housing Material: Glass filled nylon, flame retardant, heat stabilized.
- End Contacts: Copper alloy, gold or silver plated.
- Centers & Terminals: Copper alloy, gold or silver plated.
- Operating Temperature: -30°C to 85°C.
- Dielectric Strength: 1,000 V min. @ sea level.
- Insulation Resistance: 10^6 Ω min.
- Sealing: Epoxy terminal seal, compatible with bottom-wash PCB cleaning.
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E.
- Contact Materials: Gold, silver, matte-tin, epoxy options.
- Models Available: SPDT and SPST functions with various termination types.
Buy the Reliable Switches for Industrial Applications
Order TS Series Tiny Slide Switches online today and enjoy high-quality, durable components with epoxy terminal seals, multiple contact options, and reliable switching performance. Perfect for industrial, networking, and test measurement applications, these switches support all bottom-wash PCB cleaning methods, ensuring easy maintenance and long service life. Choose from various models, including SPDT and SPST configurations, rated up to 3 AMPS, with reliable contact materials like gold and silver. Secure your supplies now to ensure seamless project execution and maximum device reliability.
Buy TS Series Tiny Slide Switches now and experience unmatched reliability and performance for industrial, telecommunications, and automation equipment.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TS03ABE?
You can click on the BUY or RFQ button to purchase TS03ABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TS03ABE?
You can download the TS03ABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TS03ABE?
C&K COMPONENTS
