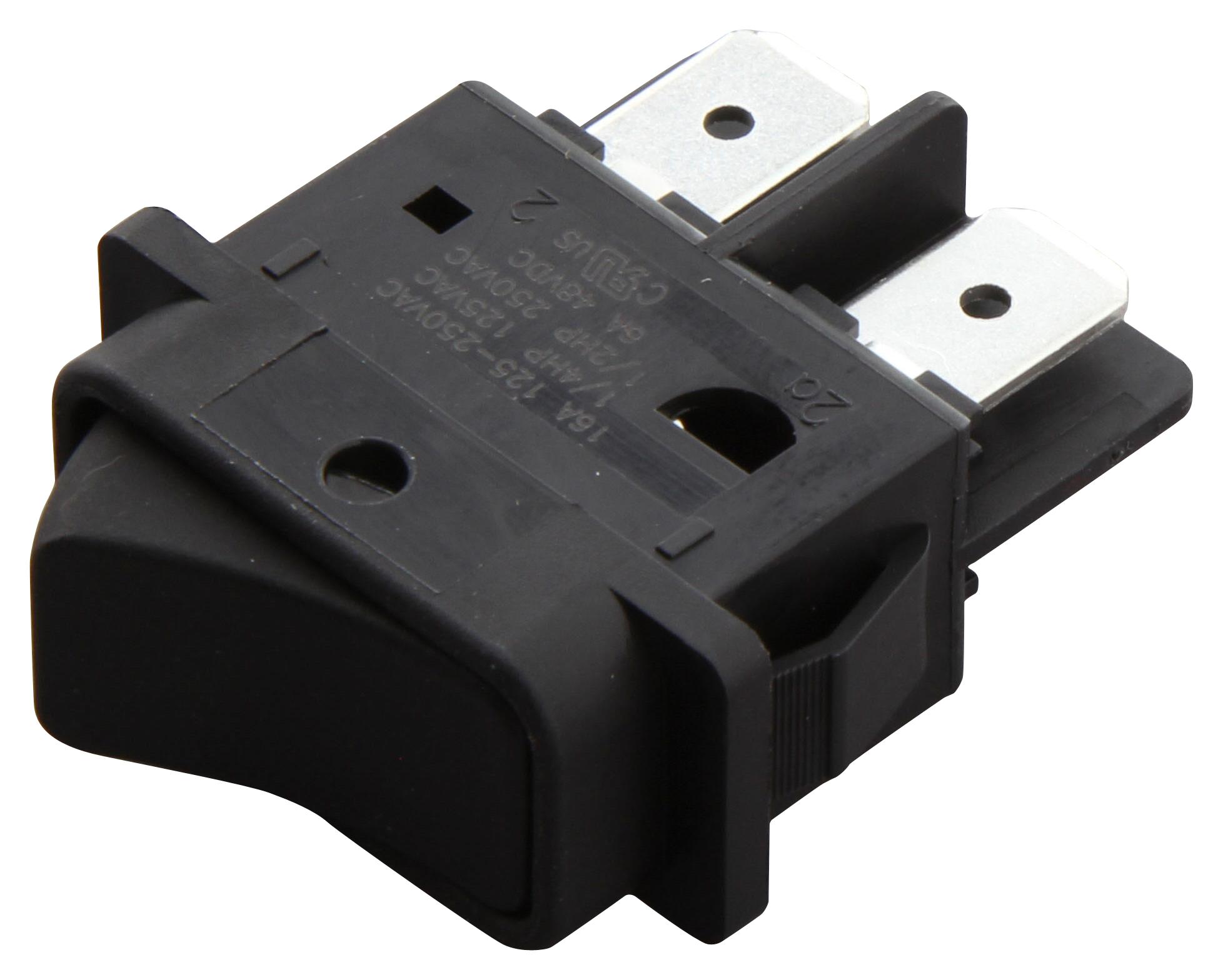

C&K COMPONENTS DF62J12S215QA Power Rocker Switch
The C&K COMPONENTS DF62J12S215QA is a durable power rocker switch engineered for reliable performance in diverse industrial and commercial settings. This DPST switch boasts a robust nylon 6/6 housing with a matte finish, ensuring longevity and a professional aesthetic. Its silver-plated fine silver contacts and copper terminals provide excellent electrical conductivity and corrosion resistance. With a contact rating of 16 Amps at 125V AC and 1/2 HP at 250V AC, this switch is well-suited for demanding applications such as power supplies, appliances, fitness equipment, and off-road vehicles. The switch offers multi-position and multi-pole functionality, along with quick connect and PC thru-hole termination options for versatile integration. It is RoHS compliant, aligning with environmental standards.
C&K COMPONENTS DF62J12S215QA Power Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125, 250 V AC; 1/4 HP @ 125 V AC; 1/2 HP @ 250 V AC; 6 AMPS @ 48 V DC, 2 AMPS @ 60 V DC, 11 AMPS @ 30 V DC
- Housing and Actuator: 6/6 nylon (UL 94V-2), black, matte finish
- Contacts: Fine silver, silver plated
- Terminals: Copper, silver plated
- Contact Spring: Music wire or stainless steel
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10^9 Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +85ºC
- Switch Function: SPST, Off-On; DPST, Off-On; SPDT, Off-On-On
- Actuator Color: Black, White
- Housing Style/Color: Sub-panel, black; Actuator guard, black; Panel, black
- Terminations: Quick connect, Right angle PC thru-hole
- Actuator Markings: NONE, ON-OFF, O |
- Contact Material: Silver
- Panel Thickness: .029–.048 inches (0,74-1,22 mm); .048–.078 inches (1,22-1,98 mm); .078–.117 inches (1,98-2,97 mm); .075–.140 inches (1,91-3,56 mm)
