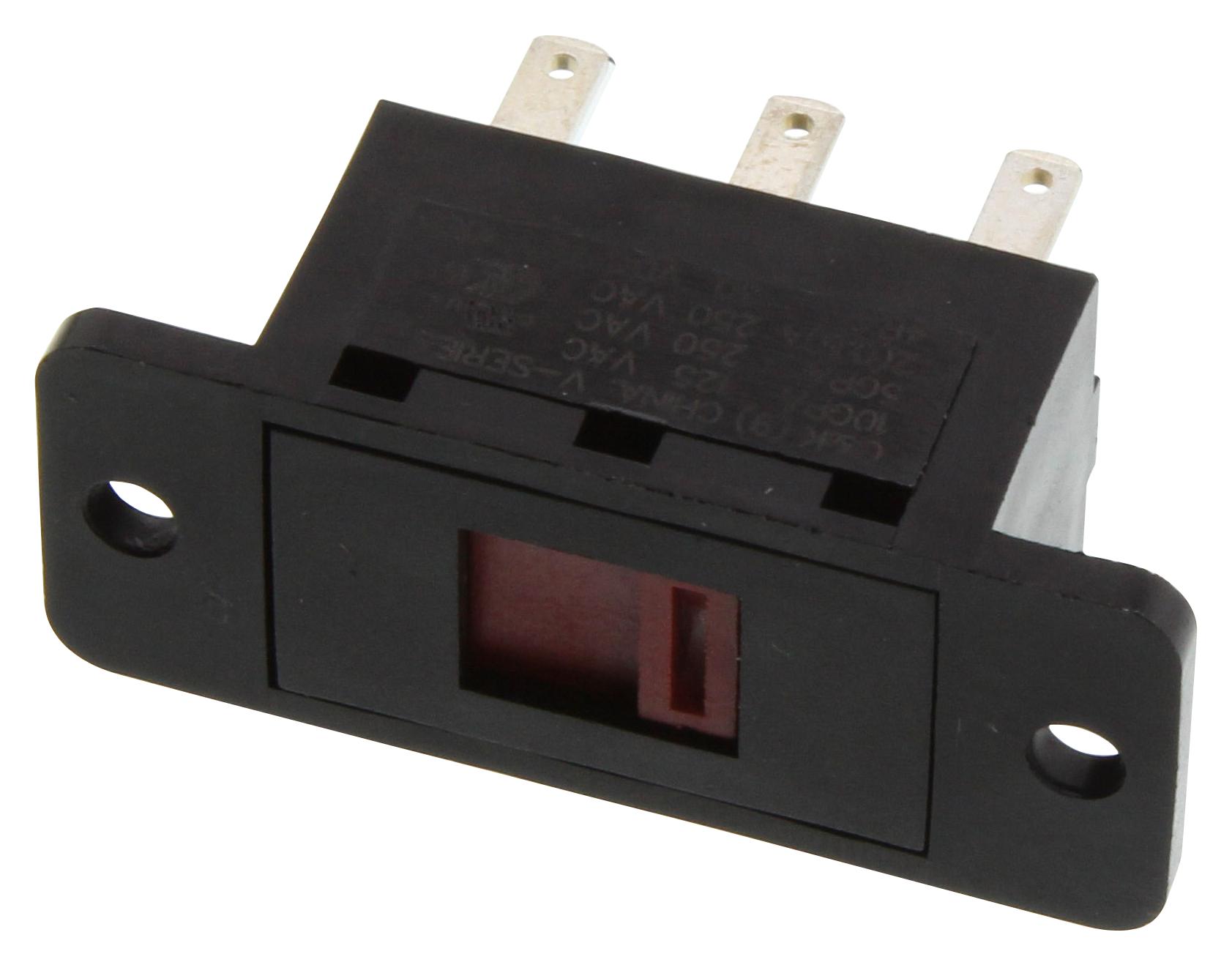

C&K COMPONENTS V80213SS05Q Power Line Select Switch
The V Series power and line voltage select slide switches offer ratings up to 10 AMPS, with snap-in panel or PC mounting options, quick connect terminals, and a robust nylon housing. Featuring copper silver-plated contacts rated at 10 GPA @ 125 V AC, these switches support 10,000 make-and-break cycles, with insulation resistance above 10^9 ohms and dielectric strength of 1,000 Vrms. Operating from -30°C to +85°C, they are RoHS compliant. Available in various actuator styles, mounting configurations, and contact materials for versatile industrial applications.
C&K COMPONENTS V80213SS05Q Power Line Select Switch Specifications:
- CONTACT RATING: 10 GPA @ 125 V AC 50/60 Hz T85; 5 GPA @ 250 V AC 50/60 Hz T85
- Housing: 6/6 nylon (UL94V-2), black
- Actuator: Glass filled polyester (UL94V-0), styles include ‘01’ and ‘02’
- Electrical Life: 10,000 cycles at full load
- Contacts: Copper, silver plated
- Contact Resistance: Below 10 mΩ initial
- Insulation Resistance: >10^9 ohms
- Dielectric Strength: Minimum 1,000 Vrms @ sea level
- Operating Temperature: -30°C to +85°C
- Terminals: Copper, silver plated
- Seal: Epoxy
- RoHS: Compliant with contact materials Q, B, G
- Mounting: Snap-in panel, PC thru-hole, right-angle options
- Stud and screw actuator styles, various markings and configurations
Buy the Buy CK Components V Series Power Line Voltage Select Switch Part Number V80213SS05Q Online
Discover the convenience of purchasing the CK Components V Series power line voltage switches online. These switches provide dependable 10 AMP ratings, durable nylon housing, and versatile mounting options suitable for industrial and commercial applications. Featuring copper silver-plated contacts, high dielectric strength, and RoHS compliance, they ensure safety and performance reliability. Easy to install with snap-in or PC mounting styles, they are perfect for automation, control panels, and appliance controls. Order now to upgrade your electrical systems with our premium switches for long-lasting, efficient operation.
Order your CK Components V Series power switches V80213SS05Q today and enhance your equipment with reliable, RoHS-compliant switching solutions designed for industrial use.
Frequently Asked Questions
Where can I buy C&K COMPONENTS V80213SS05Q?
You can click on the BUY or RFQ button to purchase V80213SS05Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part V80213SS05Q?
You can download the V80213SS05Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of V80213SS05Q?
C&K COMPONENTS
