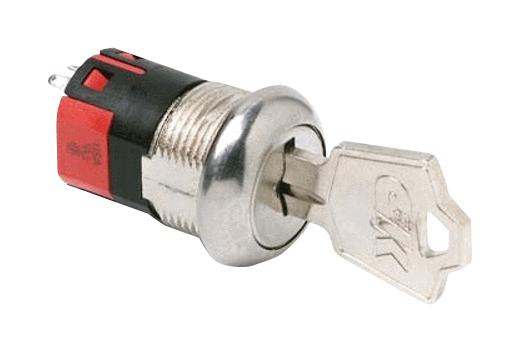

C&K COMPONENTS Y200822C203NQ Switchlock
The Y200822C203NQ is a high-security, 4 tumbler switchlock designed for reliable locking applications in point-of-sale terminals, cash registers, and computers. It features a zinc alloy lock body with stainless steel facing, heavy-duty construction, and stainless steel facing options. The lock provides excellent anti-static resistance exceeding 20 KV DC, with a contact rating of 2 AMPS at 28 V DC and 250 V AC. It includes nickel-plated brass keys, optional anti-static switch, and multiple key pull and indexing positions for versatile security and convenience. Suitable for demanding environments, it offers a robust and durable locking solution.
C&K COMPONENTS Y200822C203NQ Switchlock Specifications:
- Contact Rating: 2 AMPS @ 28 V DC and 250 V AC (UL/CSA)
- Material: Zinc alloy lock body with stainless steel facing, nickel plated brass keys
- Contact Resistance: Below 10 mΩ
- Insulation Resistance: 10^9 Ω minimum
- Dielectric Strength: 1,000 Vrms
- Operating Temperature: -30°C to 85°C
- Anti-static resistance: Exceeds 20 KV DC static resistance at sea level
- Keying Options: Nickel plated brass keys or chrome plated zinc alloy keys, standard with 4, 5, or 6 tumblers
- Lock Finish: Stainless steel facing, gloss black, polished nickel options
- Lock Dimensions: Approximately 0.798 inches (20.26 mm) diameter
- Mounting Style: Panel mount with removable dress nut or with nut/clamp options
- Dimension Tolerance: Based on inch (mm) specifications, subject to change
- Certifications: RoHS compliant with contact materials listed
Buy the CK Series Y200822C203NQ Lock: High Security 4 Tumbler Switchlock
Purchase the CK Series Y200822C203NQ switchlock online today and secure your point-of-sale, cash register, or computer system with a reliable, anti-static, durable locking mechanism. This high-security lock offers excellent resistance to static discharge, a robust zinc alloy body, and versatile keying options that ensure peace of mind in demanding environments. Easy to install, with multiple key positions and mounting styles, it provides a perfect combination of security and convenience, making it an excellent choice for various industrial and commercial applications.
Buy CK Series Y200822C203NQ lock now and experience unmatched durability and security in your locking and switching applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y200822C203NQ?
You can click on the BUY or RFQ button to purchase Y200822C203NQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y200822C203NQ?
You can download the Y200822C203NQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y200822C203NQ?
C&K COMPONENTS
