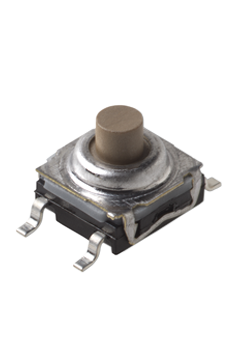

C&K COMPONENTS Y31C21664FPROHS Sealed Tact Switch
The C&K COMPONENTS Y31C21664FPROHS is a sealed momentary action tact switch designed for demanding environments. It offers a positive tactile feel, IP67 sealing for protection against dust and water, and is available with J or Gullwing terminations for SMT assembly. Typical applications include automotive interiors, medical instruments, industrial electronics, and network infrastructure. The switch is suitable for use in applications requiring a certain level of quality or safety, but customers should contact customer service for contractual specifications.
C&K COMPONENTS Y31C21664FPROHS Sealed Tact Switch Specifications:
- FUNCTION: Momentary action
- CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
- TERMINALS: J bend & Gullwing type for SMT
- SEALING: IP67 (except KSC5 - IP50)
- OPERATING TEMPERATURE: -40°C to 85°C / -40°C to 125°C
- STORAGE TEMPERATURE: -55°C to 85°C / -55°C to 125°C
- MAXIMUM POWER: 1 VA / 0.2 VA
- MAXIMUM VOLTAGE: 32 VDC
- MINIMUM VOLTAGE: 20 mV
- MAXIMUM CURRENT: 50 mA / 10 mA
- MINIMUM CURRENT: 1 mA / 0.1 mA
- DIELECTRIC STRENGTH: ≥ 250 Vrms
- CONTACT RESISTANCE: ≤ 100mΩ
- INSULATION RESISTANCE: ≥ 10M Ω
- BOUNCE TIME: ≤ 1 ms
- PACKAGING: Tape and Reel
