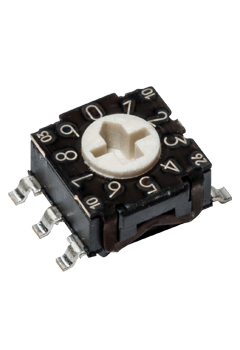

C&K COMPONENTS Y36CB0413FPLFT Low Profile Rotary DIP Switch
C&K Components' RTE series low profile rotary DIP switches are designed for applications requiring a compact and reliable switching solution. Featuring a miniature size with a robust metal cover in black or silver nickel finish, these switches offer versatility with options for vertical, right angle, or reverse versions. They are ideal for timers, automation components, computer peripherals, alarms, access control systems, smoke detectors, lighting, and home protection systems. The switches are available in 4, 10, and 16 positions with a large choice of codings and support both thru-hole and surface mount configurations. RoHS compliant and designed for reliable performance.
C&K COMPONENTS Y36CB0413FPLFT Low Profile Rotary DIP Switch Specifications:
- Contact Rating: 100 mA max. 10µ A min. 30 V DC max. 20 mVDC min.
- Mechanical Life: 20,000 indexations
- Cover Material: Brass, nickel plated (black or silver)
- Base Material: PPS
- Actuator Material: LCP
- Movable Contact Material: Copper alloy, gold plated
- Stationary Contact Material: Brass, gold plated
- Terminal Material: See page I-28 to I-29
- Contact Resistance: 100 mΩ max. initial; 150 mΩ after life
- Insulation Resistance: 10[10] Ω min. initial
- Dielectric Strength: 300 Vrms 1 mn
- O-Ring Material: Silicone
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -55°C to 85°C
- Surface Mount Soldering: Infrared Reflow Soldering in accordance with IEC 61760-1
- Thru-Hole Soldering: Lead free single or double wave soldering process according to C&K Procedure PS-LF-001
- Manual Soldering: 3 sec / 350°C
