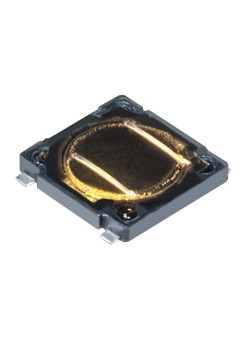

C&K COMPONENTS Y97DT23B4ABFP Ultra Low Profile SMT Switch
The C&K PTS 530 series represents a cutting-edge solution in tactile switches, specifically engineered for surface mount technology (SMT) applications where space is at a premium. With its ultra-low profile design, measuring just 0.55mm thick and a compact 4.5x4.5mm footprint, this switch seamlessly integrates into a wide range of devices. Its momentary action and SPST contact arrangement make it versatile for various control functions. Typical applications include MP3 accessories, Bluetooth headsets, remote controls, and garage door openers. The PTS 530 series boasts a high number of cycles and symbol line identification, ensuring reliable performance and ease of integration into PCB designs. Available in various actuation force options, it caters to diverse user preferences and application requirements.
C&K COMPONENTS Y97DT23B4ABFP Ultra Low Profile SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: Gullwing for SMT
- Travel: 0.2mm - 0.1 /+ 0.15mm
- Operating Force: 100± 30 gf to 600 - 50/+100 gf
- Operating Life: 1,000,000 operations (some variants 200,000 operations)
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: Reels of 7,000 pieces, Dimensions of reels according to EIA 481B External diameter 330 mm
- Footprint: 4.5 x 4.5 mm
- Thickness: 0.55 mm
Buy the Y97DT23B4ABFP C&K COMPONENTS Ultra Low Profile SMT Switch | myMectronic
Secure your C&K PTS 530 series switches today and experience reliable performance for your critical applications.
