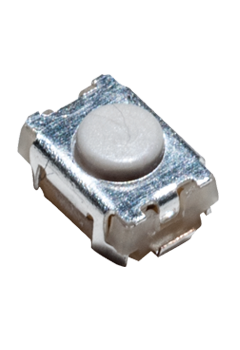

C&K COMPONENTS Y97MT16B5CBFP Microminiature SMT Switch
The C&K PTS820 series microminiature SMT top-actuated switch offers a compact and reliable solution for various applications. Its small footprint and multiple height options (1.5mm, 2.0mm, and 2.5mm) make it suitable for space-constrained designs. The switch boasts a high number of cycles, ensuring long-term durability. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The easy build-a-switch concept allows for customization to meet specific design requirements. Refer to the datasheet for detailed specifications and ordering information.
C&K COMPONENTS Y97MT16B5CBFP Microminiature SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: J type for SMT
- Travel: 0.2mm + 0.1mm / -0.05 mm
- Operating Force: 160± 50 gf
- Life Cycles: 200,000 cycles (typical)
- Height: 1.5mm, 2.0mm, 2.5mm
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 100 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: Reels of 2,500 pieces (1.5mm & 2.0mm height), Reels of 2,300 pieces (2.5mm height)
Buy the Y97MT16B5CBFP C&K COMPONENTS Microminiature SMT Switch | myMectronic
Purchase the C&K PTS820 series microminiature switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y97MT16B5CBFP?
You can click on the BUY or RFQ button to purchase Y97MT16B5CBFP from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y97MT16B5CBFP?
You can download the Y97MT16B5CBFP datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y97MT16B5CBFP?
C&K COMPONENTS
