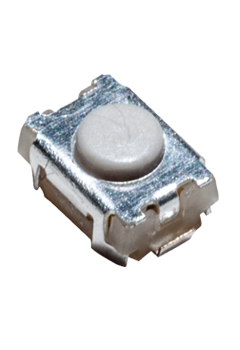

C&K COMPONENTS Y97MT26B2MBFP Microminiature SMT Switch
The C&K COMPONENTS PTS820 series microminiature SMT top-actuated switch offers a compact and reliable solution for various applications. Its small 3.9 x 2.9 mm footprint and multiple height options (1.5mm, 2.0mm, and 2.5mm) make it ideal for space-constrained designs. The switch provides momentary action with a 0.2mm travel and boasts a high number of cycles, ensuring long-term durability. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The switch is available with or without pegs and offers various actuation forces to meet specific design requirements. It is compatible with infrared reflow soldering methods and packaged in reels for automated assembly.
C&K COMPONENTS Y97MT26B2MBFP Microminiature SMT Switch Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: J type for SMT
- travel: 0.2mm + 0.1mm / -0.05 mm
- operating_force: 160± 50 gf
- life_cycles: 200,000 cycles
- height: 2.5 mm
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 100 VA C (1mn)
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging_1_5mm: Switches in reels of 2,500 pieces
- packaging_2_0mm: Switches in reels of 2,300 pieces
- packaging_2_5mm: Switches in reels of 2,300 pieces
- reel_diameter: External diameter 330 mm
