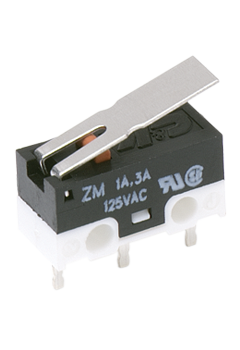

C&K COMPONENTS ZMCHF7L3L Subminiature Snap-Acting Switch
The C&K COMPONENTS ZMCHF7L3L is a subminiature snap-acting switch designed for a variety of applications requiring a compact and reliable switching solution. It boasts a dependable snap-acting mechanism, ensuring consistent performance over its long electrical and mechanical lifespan. The switch's small size makes it ideal for use in space-limited environments, such as PCB detection systems, communication devices, and security/alarm systems. Constructed with durable materials like Nylon 6/6 and silver alloy contacts (with gold plating options), the ZMCHF7L3L offers robust performance and reliability. It is also RoHS compliant, aligning with environmental standards.
C&K COMPONENTS ZMCHF7L3L Subminiature Snap-Acting Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles @ 3A
- Insulation Resistance: 100 M ohm min
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30ºC to 85ºC
- Operating Force: CJ: 150 grams, CH: 90 grams
- Materials: {'Cover': 'Nylon 6/6', 'Actuator Button': 'Nylon 6/6', 'Case': 'Nylon 6/6', 'Spring': 'SUS', 'Movable Blade': 'BeCu', 'Movable Contact': 'Silver alloy (M9 option gold plated)', 'Fixed Contacts': 'Silver alloy (M9 option gold plated)', 'Fixed Terminals': 'Brass - Ag plated', 'Actuator (Leaf / Roller options)': 'SUS'}
- UL Certification: UL61058-1
Buy the ZMCHF7L3L C&K COMPONENTS Subminiature Snap-Acting Switch | myMectronic
Purchase the C&K COMPONENTS ZMCHF7L3L Subminiature Snap-Acting Switch securely and efficiently for your commercial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCHF7L3L?
You can click on the BUY or RFQ button to purchase ZMCHF7L3L from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCHF7L3L?
You can download the ZMCHF7L3L datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCHF7L3L?
C&K COMPONENTS
