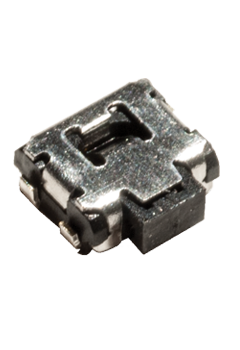

C&K COMPONENTS Y97NS13B5ABFP Microminiature SMT Switch
The C&K COMPONENTS PTS 840 series microminiature SMT side-actuated switch offers a compact and reliable solution for a variety of applications. Its small footprint and side-actuated design make it suitable for space-constrained environments. The ESD pin option provides electrostatic discharge protection, while the front PIP leads enhance shear resistance. Common applications include nomad devices, remote controls, and personal health diagnostics. The switch is available with various options, including ground pins and different actuation forces, allowing for customization to meet specific design requirements. It is RoHS compliant and packaged in reels for automated assembly.
C&K COMPONENTS Y97NS13B5ABFP Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces, external diameter 330 mm
