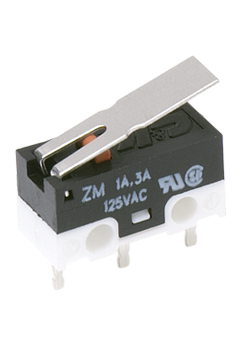

C&K COMPONENTS ZMCHM9L3L Subminiature Snap Switch
This subminiature snap-acting switch is engineered for precise, reliable switching in compact electronic assemblies. Featuring a robust snap mechanism and high cycle life, it is ideal for PCB detection, communication devices, testing equipment, security, alarm systems, and consumer electronics. Constructed with nylon 6/6 cover, actuator button, and case, along with silver alloy or gold-plated contacts, it supports operating forces of 150 grams (CJ) or 90 grams (CH). Its electrical ratings include 3A at 125 VAC and 0.2A at 60 VDC, with an operating temperature range of -30°C to 85°C.
C&K COMPONENTS ZMCHM9L3L Subminiature Snap Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles @ 3A
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1000 Vrms.
- Operating Temperature: -30°C to 85°C
- Operating Force: CJ: 150 grams, CH: 90 grams
- Materials: Cover, Actuator Button, Case - Nylon 6/6; Spring - SUS; Movable Blade - BeCu; Contacts - Silver alloy (gold plated option)
- Terminals: PCB Thru-hole, with retention option, Brass - Ag plated.
- Dimensions: Typical actuation length 13 mm, actuator travel max 3.4 mm, contact separation approx. 0.8 mm.
- RoHS compliant and suitable for space-constrained applications with various actuator and terminal options.
Buy the Buy Electronics Switch Components Part Number ZMCHM9L3L Online
Purchase the reliable subminiature snap switch ZMCHM9L3L online today. Ideal for PCB detection, communication devices, security, testing, and consumer electronics. Offers a long electrical and mechanical life, with a compact design fitting tightly into limited spaces. Supports 3A at 125 VAC and 0.2A at 60 VDC, with high insulation resistance and dielectric strength. Crafted from durable materials like nylon 6/6, silver alloy, and SUS spring, it ensures consistent operation across -30°C to 85°C. Order now for fast delivery and superior performance.
Buy Electronics Switch Components ZMCHM9L3L now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCHM9L3L?
You can click on the BUY or RFQ button to purchase ZMCHM9L3L from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCHM9L3L?
You can download the ZMCHM9L3L datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCHM9L3L?
C&K COMPONENTS
