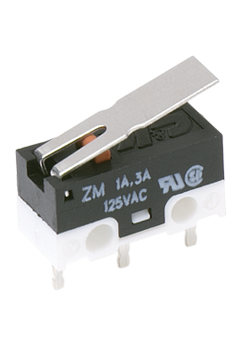

C&K COMPONENTS ZMCJF7P0L Subminiature Snap Switch
This compact subminiature snap-acting switch offers reliable quick response with positive action, making it ideal for space-limited electronics, communication, security, and testing applications. It features various actuator options, RoHS compliance, and a rated electrical life of 10,000 cycles. The switch includes material specifications such as nylon covers, silver alloy contacts, and SUS springs, ensuring durability and consistent performance. Designed for PCB mounting, it provides excellent insulation resistance and dielectric strength, suitable for both low-level and general switching conditions in diverse electronic systems.
C&K COMPONENTS ZMCJF7P0L Subminiature Snap Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles
- Insulation Resistance: 100 M ohm min
- Dielectric Strength: 1000 Vms
- Operating Temperature: ~30°C to 85°C
- Operating Force: Cu: 150 grams, CH: 90 grams
- Contact Material: Silver alloy (gold plated on M9 option)
- Fixed Contacts: Silver alloy, Brass - Ag plated
- Cover Material: Nylon 6/6
- Case Material: Nylon 6/6
- Spring Material: SUS
- Movable Blade: BeCu
- Actuator Button: Nylon 6/6
- Actuator Types: P Po pin plunger, Leaf, Roller, Thru-hole with retention
- Mounting: PCB Mounting, through-hole options available
- RoHS compliant: Yes
Buy the Buy Manufacturer ZM Series Subminiature Snap-acting Switch Part Number ZMCJF7P0L Online
Get your Manufacturer ZM Series ZMCJF7P0L subminiature snap-acting switch online today. Designed for reliability, durability, and space-efficient integration in electronic devices, it features quick response, RoHS compliance, and versatile actuator options. Ideal for PCB detection, communication devices, security systems, and testing equipment, this switch offers a long electrical and mechanical lifespan of 10,000 cycles, high insulation resistance, and excellent dielectric strength. Purchase now to enhance your project with proven quality and precise operation.
Order your Manufacturer ZM Series ZMCJF7P0L today and give your electronic projects dependable switching performance with space-saving design and durable materials.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCJF7P0L?
You can click on the BUY or RFQ button to purchase ZMCJF7P0L from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCJF7P0L?
You can download the ZMCJF7P0L datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCJF7P0L?
C&K COMPONENTS
