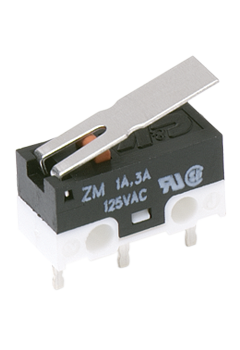

C&K COMPONENTS ZMCJF7T13T Mini Size Snap-acting Switch
The ZM Series Mini Size Snap-acting Switches are reliable, compact, and designed for various applications including PCB detection, communication devices, and testing equipment. Features include a snap-acting mechanism, long electrical and mechanical life, and RoHS compliance. Available in different actuators such as pin plunger, leaf, and simulated roller, with terminal options like PC thru-hole and retention features. Rated for 3A at 125 VAC and 0.2A at 60 VDC, with operating temperatures from -30°C to 85°C, and operating forces from 90 to 150 grams. Ideal for secure, space-efficient switching solutions.
C&K COMPONENTS ZMCJF7T13T Mini Size Snap-acting Switch Specifications:
- CONTACT RATING: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- ELECTRICAL LIFE: 10,000 Cycles @ 3A
- INSULATION RESISTANCE: 100 M ohm min.
- DIELECTRIC STRENGTH: 1000 Vims.
- OPERATING TEMPERATURE: -30°C to 85°C
- OPERATING FORCE: CW: 150 grams, CH: 90 grams
- COVER/CASE: Nylon 6/6
- ACTUATOR MATERIAL: Nylon 6/6
- SPRING: SUS
- MOVABLE BLADE & CONTACT: BeCu, Silver alloy (gold plated option available)
- TERMINALS: Brass - Ag plated
- Actuator Types: PO Pin Plunger, Leaf, Simulated Roller
- Terminations: PC Thru-hole, with retention features
- Dimensions: Lengths vary from approximately 13 mm to 15 mm depending on actuator and actuator options, with force and travel specifications as per actuator type.
- Standards: UL61058-1, CSA certified
Buy the Buy Reliable Snap-acting Switch Part Number ZMCJF7T13T Online
Order the ZM Series Mini Size Snap-acting Switch ZMCJF7T13T online today. This compact switch offers high durability, reliable snapping action, and excellent electrical ratings. Ideal for PCB detection, automotive door latch, and security systems, it features a snap-acting mechanism with a long electrical life of 10,000 cycles. Constructed with nylon casing, silver alloy contacts, and various actuator options, it ensures optimal performance in space-constrained environments. Easy to select and order online for quick delivery to meet your automation and electronic needs.
Get ZM Series Snap-acting Switch ZMCJF7T13T today—designed for space-saving applications and long-lasting electrical performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCJF7T13T?
You can click on the BUY or RFQ button to purchase ZMCJF7T13T from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCJF7T13T?
You can download the ZMCJF7T13T datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCJF7T13T?
C&K COMPONENTS
