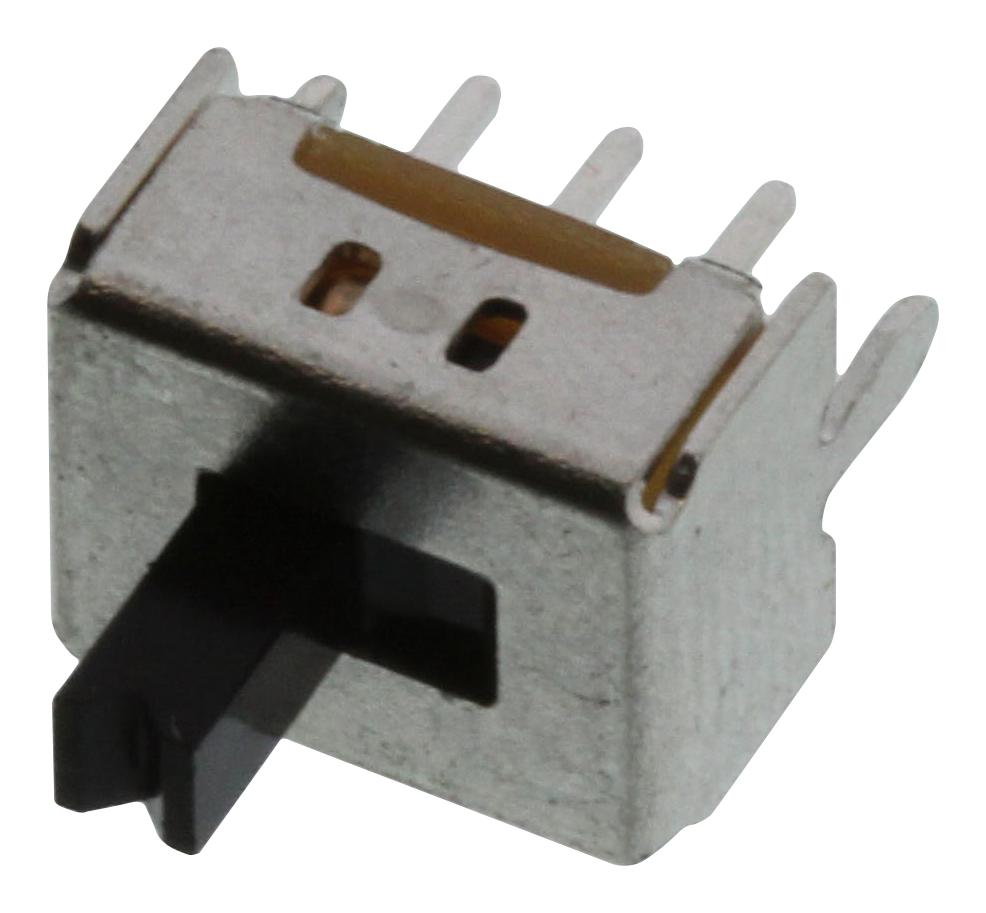

C&K COMPONENTS OS202011MS2QS1 Miniature Slide Switch
The OS202011MS2QS1 is a miniature slide switch designed for various electronic and industrial applications, including test equipment, consumer products, and network devices. It features a rugged phenolic resin base with copper alloy contacts, silver plated for durability, and a high-quality actuator compatible with panel or PCB mounting. This switch provides reliable operation with a mechanical and electrical life of 10,000 cycles, contact resistance below 20 mΩ, and insulation resistance of 100 MΩ at 500 VDC. Operating temperature ranges from -30°C to +70°C, making it suitable for demanding environments. RoHS compliant and halogen free materials ensure eco-friendliness and safety compliance. Multiple contact configurations and terminal options support versatile circuit integration.
C&K COMPONENTS OS202011MS2QS1 Miniature Slide Switch Specifications:
- Contact Resistance: 20 mΩ or less
- Mechanical & Electrical Life: 10,000 cycles
- Insulation Resistance: 100 MΩ at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Contact Rating: 0.18 @ 12 VDC
- Operating Temperature: -30°C to +70°C
- Material: Phenolic resin base, copper alloy movable contact, brass stationary contact
- Contact Plating: Silver plated
- Terminal Type: Sealed terminals, various configurations
- RoHS compliant, Halogen free material
- Dimensions: Based on specific switch model, suitable for PCB mounting
- Other features: Compatible with test & measurement equipment, consumer electronics, network products
Buy the Buy Industry Components Miniature Slide Switch Part Number OS202011MS2QS1 Online
Order the Industry Components OS202011MS2QS1 miniature slide switch online today. This high-quality, resilient switch supports 10,000 cycles, offers various contact options, and is RoHS compliant. Perfect for PCB and panel mounting in test gear, consumer electronics, and networking equipment. Designed with durable materials, including silver-plated contacts and sealed terminals, it ensures reliable operation in demanding environments. Purchase now to enhance your project with a dependable, eco-friendly switch that combines versatility, precision, and long-term durability.
Get Industry Components OS202011MS2QS1 today—built for precision and long-lasting durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS202011MS2QS1?
You can click on the BUY or RFQ button to purchase OS202011MS2QS1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS202011MS2QS1?
You can download the OS202011MS2QS1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS202011MS2QS1?
C&K COMPONENTS
