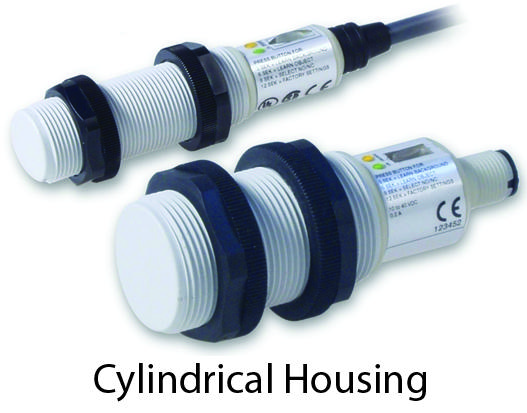

CARLO GAVAZZI CA18CLN12TC Capacitive Sensor
The CA18CLN12TC capacitive proximity switch features a grey M18 polyester housing with a 2-meter PVC cable or M12 plug. It detects objects at 8mm when flush mounted in metal or 12mm non-flush. The device has a 2-wire AC output with make (NO) or break (NC) switching, ideal for level detection and plastic machinery. It includes TripleShield™ protection, adjustable sensing distance from 3 to 12mm, rated voltage of 20-250VAC, SCR output, LED indicator, high noise immunity, and flexible plug or cable connection options, including DC versions, making it a reliable industrial sensor.
CARLO GAVAZZI CA18CLN12TC Capacitive Sensor Specifications:
- Housing Material: Grey polyester
- Housing Size: M18, 8mm flush or 12mm non-flush mounting options
- Detection Range: 3 to 8mm (flush), 3 to 12mm (non-flush)
- Rated Operational Voltage: 20-250VAC
- Output Type: SCR, 2-wire AC switch
- Output Configuration: Make (NO) or Break (NC)
- Protection Class: IP67
- Temperature Range: -25°C to +80°C
- Sensing Distance Adjustment: 270° turn potentiometer
- Supply Frequency: 10 Hz
- LED Indicator: Output ON status, yellow
- Sensitivity Settings: Factory set, adjustable
- Response Time: <100 ms
- Connections: M12 plug or 2m PVC cable
- Standards: CE marked
- Dimensions: M18 housing, suitable for industrial environments
Buy the Carlo Gavazzi CA18CLN12TC – Reliable Capacitive Sensor for Industrial Applications
Discover the Carlo Gavazzi CA18CLN12TC capacitive sensor designed for precise level detection and object sensing in industrial environments. Featuring a durable grey polyester housing, adjustable sensing distances from 3 to 12mm, and high noise immunity, this sensor is suitable for use in plastics, chemicals, and packaging industries. It offers IP67 protection, 20-250VAC rated voltage, SCR output, and flexible connection options including plug and cable versions. Reliable and easy to install, it’s your ideal solution for automation and control tasks.
Buy Carlo Gavazzi CA18CLN12TC now and experience unmatched reliability and performance in level detection and machinery control.
