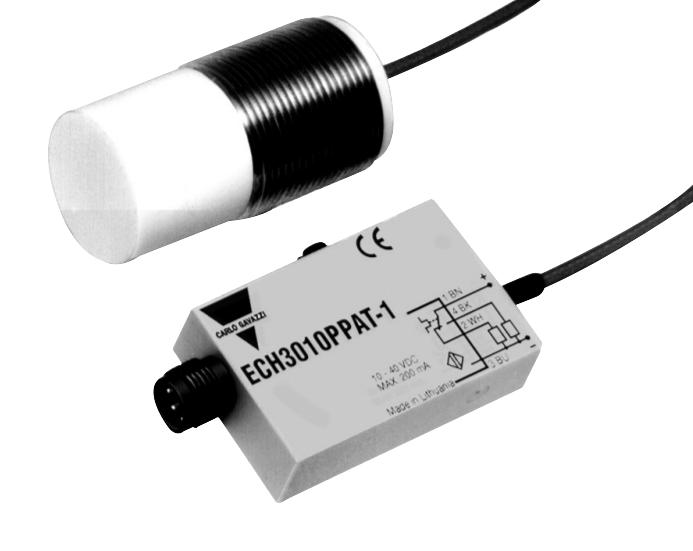

CARLO GAVAZZI ECH3010PPAT1 Capacitive Proximity Sensor
The capacitive proximity sensor is designed for high-temperature applications, with a teflon and stainless steel M30 sensor head capable of operating within -196°C to +180°C. It features adjustable sensing distances from 4 to 15 mm, factory set at 10 mm, and supports both NPN and PNP transistor outputs for reliable switching. The sensor's robust construction accommodates sensitive detection in plastic molding and hot wax environments, with a compact housing, shielded teflon cable, and protection against reverse polarity, short circuits, and transients for stable performance in industrial settings.
CARLO GAVAZZI ECH3010PPAT1 Capacitive Proximity Sensor Specifications:
- Housing diameter: M30
- Sensing distance: 4 to 15mm, factory set at 10mm
- Operating voltage: 10 to 40 VDC
- Output: NPN or PNP transistor switch
- Temperature range: -196°C to +180°C
- Housing material: Teflon and stainless steel
- Protection: IP 67
- Cable: 1 m Teflon shielded
- Housing material (sensor): Teflon
- Sensor thread: M30 x 1.5 stainless steel AISI 304
- Weight: Sensor 90g, amplifier 45g
- Dimensions: Compact design suitable for industrial environments
- Protection features: Reverse polarity, short-circuit, transient protection
- Frequency of operation: 5 pulses/sec
- Indication: Yellow LED for output ON status
- Max tightening torque: 80 Nm
Buy the Buy Carlo Gavazzi Capacitive Proximity Sensor Part Number ECH3010PPAT1 Online
Purchase the high-temperature capacitive proximity sensor online to ensure reliable detection in extreme environments. Featuring an M30 teflon and stainless steel housing, it operates from -196°C to +180°C with adjustable sensing distances up to 15 mm. Its NPN or PNP transistor outputs make it suitable for various automation applications, including plastic molding and hot wax detection. The sensor’s IP67 rating, transient protection, and shielded Teflon cable guarantee durability and stable operation, making it an essential component for industrial process automation and temperature-sensitive environments.
Buy Carlo Gavazzi ECH3010PPAT1 now and experience high-temperature detection with adjustable sensing distance and robust construction for industrial use.
